In embedded display design, selecting the right panel is only the first step. The real challenge for engineers begins during the debugging phase: the panel is chosen, but the screen remains black. Issues like flickering, "snow" effects, color distortion, or total failure to boot are rarely caused by the panel itself. Instead, 90% of these problems stem from the display interface. Today, we will dive deep into the four mainstream interfaces—RGB, LVDS, MIPI, and eDP—analyzing their technical trade-offs, common pitfalls, and how to choose the =right one to ensure your project "lights up" on the first try. 1. RGB Interface: The Real-Time "Broadcaster" Principle: A parallel synchronous interface (VSYNC/HSYNC/DE/CLK). The host must continuously stream pixel data; if the signal is interrupted, the screen goes black immediately. Pros: Low protocol cost, straightforward implementation. Cons: High pin count, prone to Electromagnetic Interference (EMI). Critical Pitfall: The 30cm Limit: RGB uses single-ended TTL signals with weak drive capability. Once the transmission distance exceeds 30cm, signal integrity degrades rapidly, leading to ghosting and EMI compliance failures. Design Tip: If your SoC lacks native 8080 interface support, avoid using GPIO bit-banging (it consumes excessive CPU and yields low frame rates). A more advanced workaround is utilizing the DE (Data Enable) signal of the hardware RGB circuit to simulate a Write-Enable signal. In practical tests (e.g., using the HCSEMI B200), this method can drive small displays at a smooth 40 FPS. 2. LVDS Interface: The "Long-Distance Runner" Principle: Low-Voltage Differential Signaling. It uses opposite polarities to cancel out common-mode interference, making it the gold standard for automotive and industrial long-distance transmission. Pros: Exceptional noise immunity, supports cable lengths up to several meters. Critical Pitfall:Topology and Impedance Matching: During transmission across different media (e.g., from PCB to FPC), parasitic capacitance can cause signal reflections. Do not rely on simple routing. Use a T-junction architecture to optimize impedance matching and ensure a precise 100Ω termination resistor at the receiver to eliminate flickering and eye-diagram distortion. Software Trap: If the screen turns on but the colors appear washed out (like an oil painting), the issue is usually a mismatch between VESA and JEIDA data mapping formats. 3.. MIPI DSI: The Art of Efficiency Principle: Mobile industry standard (DSI). Research shows that its layered protocol and D-PHY physical layer allow single-lane speeds to exceed 1Gbps. Pros:High bandwidth, ultra-low power consumption, and minimal pin count. Criticl Pitfall:Timing and Initialization:MIPI requires strict adherence to differential pair length matching and impedance continuity. However, the most hidden "traps" are in the protocol layer. MIPI operates in two states: LP (Low Power) and HS (High Speed). Most "black screen" issues occur because the Init Code (Initialization Sequence) is incorrect or the timing of the LP-to-HS transition does not meet the panel’s specific requirements. 4. eDP Interface: The High-Definition Powerhouse Principle:: Embedded DisplayPort (VESA standard). It is the peak solution for balancing high bandwidth with simplified wiring. Pros:Supports 4K/8K resolutions, massive bandwidth, and features a built-in Link Training mechanism. Critical Pitfall:The Forgotten AUX Channel  eDP is not a "plug-and-play" interface. Before transmission, the host must perform "Link Training" via the AUX (Auxiliary) Channel. If the AUX circuit is poorly designed (e.g., missing proper bias resistors), the host cannot read the screen's EDID (Extended Display Identification Data). Even if your data lanes are perfect, the host will not output a video stream. Final Decision: Three Steps to Success Before finalizing your hardware design, verify these three critical factors: 1.Native Support:Does your SoC support the protocol natively? Always prioritize hardware-level support over software emulation to save CPU resources. 2.Physical Environment: Is the cable longer than the 30cm "RGB Red Line"? Have you accounted for impedance matching across different PCB/FPC media? 3.Environment: Is there high EMI? (If yes, prioritize differential interfaces like LVDS/MIPI).

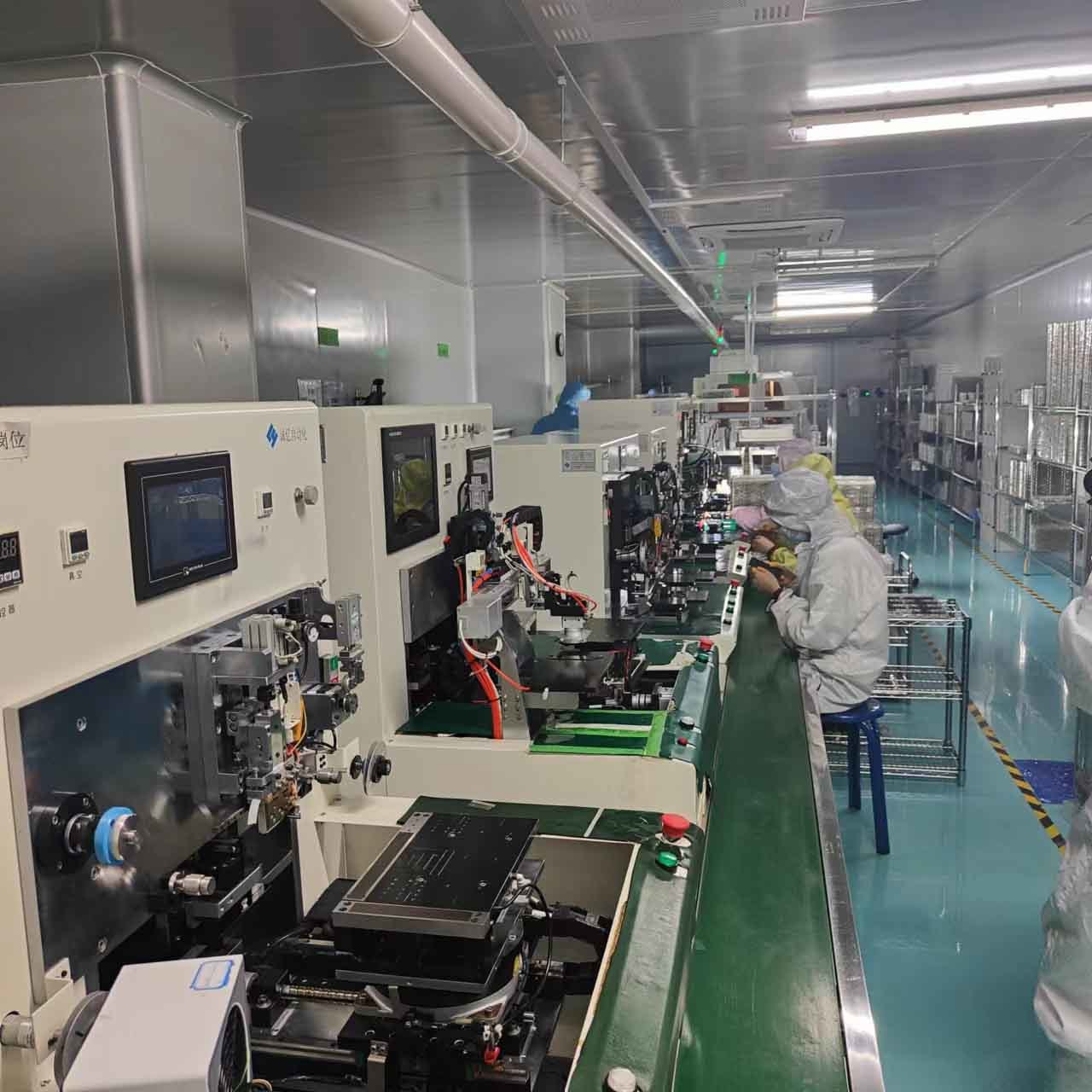

Are you facing these common display issues? * High-brightness screens that still wash out in sunlight * Bubbles, delamination, or edge lifting after just a few months * Rising rework rates and after-sales costs in volume production   Many companies invest heavily in high-grade panels, only to struggle because of the easily overlooked lamination process.   In the LCD and touch display industry, the panel sets the baseline — but the lamination process determines: * Sunlight readability * Touch responsiveness and parallax control * Long-term reliability under environmental stress * First-pass yield and warranty cost   Choosing the wrong lamination method puts your entire product at risk.   1. Air Bonding vs. Full Optical Bonding   Air Bonding (Frame Bonding)   Uses double-sided perimeter tape to attach the touch panel to the display. * Advantages: Low cost, easy to repair, high initial yield * Disadvantages: Air gap introduces internal reflections, washing out sunlight readability; noticeable parallax error creates a disconnect between what you see and where you touch.   Full Optical Bonding   Uses OCA (dry adhesive) or OCR / LOCA (liquid optical adhesive) to fill the entire gap with no air space.   * Advantages: Eliminates air gaps; excellent sunlight readability; dustproof and waterproof; improved impact resistance; precise “what you see is what you touch”   In short: Air bonding fits basic low-cost products. Optical bonding is the standard for high-quality displays.   2. OCA vs. OCR / LOCA: Which Is Better?   OCA (Dry Adhesive) * Uniform thickness, fast processing * Well-suited for small to medium panels * Prone to edge bubbles and delamination under thermal cycling or on large-format displays   OCR / LOCA (Liquid Optical Clear Adhesive) * Superior gap-filling over ink steps and surface irregularities * Excellent shock absorption and aging resistance * Preferred for industrial, automotive, and outdoor high-reliability applications   3. Why Do Bubbles Keep Happening? 90% Is Process Control   Bubbles are not random — they result from poor process control.   Stable, bubble-free optical bonding demands strict process control: *Dispense patterns must follow V, W, or double-Y paths to prevent air entrapment. *Lamination speed should not exceed 0.2 mm/s to allow complete air evacuation. * Full lamination must be performed under vacuum. * Use staged UV curing to minimize adhesive shrinkage and secondary bubble formation.   With proper engineering discipline, bubbles become a non-issue.   4. Lamination Method Comparison   Item Air Bonding Full Lamination (OCA) Full Lamination (OCR/LOCA) Cost Lower Medium Higher Clarity Reflective,low ambient contrast Excellent, minimal reflection  Ultra-clear, sunlight readable Durability Sensitive to humidity Good thermal stability Excellent under thermal shock and vibration Touch Feeling Noticeable parallax error Zero parallax Zero parallax Best For Indoor, cost-sensitive devices Consumer/industrial small-to-medium displays Outdoor,automotive,medical,high-reliability   These are the core differences and key pitfalls of the three most widely used lamination methods.Outdoor performance and longterm stability depend heavily on the invisible adhesive layer and precision process.   For outdoor, automotive, and industrial displays, we strongly recommend validating lamination solutions early in prototyping. This greatly reduces rework, complaints, and after-sales costs.   Prototyping proves performance. Mass production needs consistency.The right adhesive choice directly boosts yield.   Need high-yield optical bonding for volume production? Send us your display size and application environment. We'll respond with a detailed lamination recommendation tailored to your project's reliability requirements.

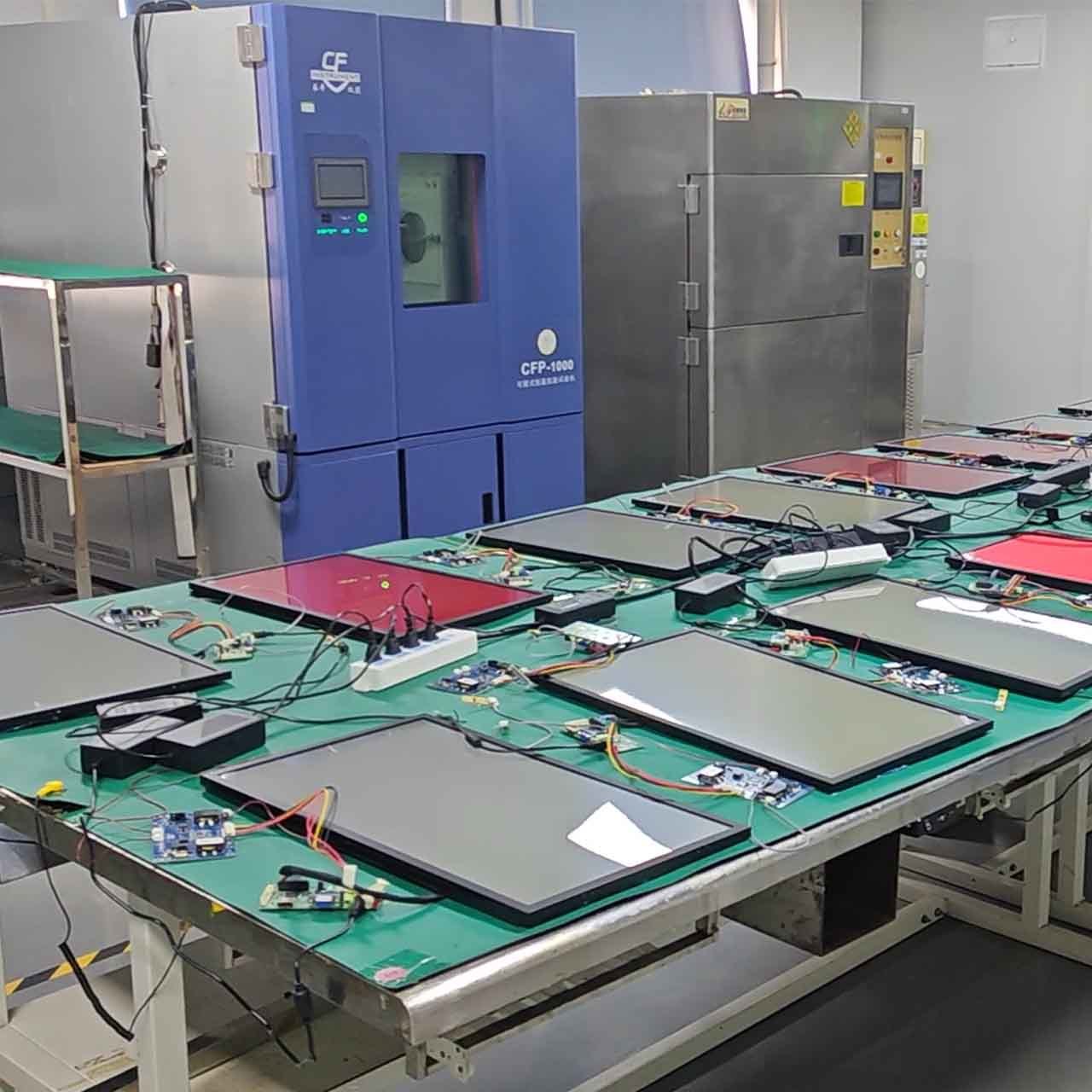

We have covered many technical details of LCDs, from the differences between TN, VA, and IPS panels to hardware adaptation and driver debugging. However, many engineers still encounter problems in actual projects—even if they choose the right panel, it frequently malfunctions after being installed in equipment. The reason usually lies not in the screen itself, but in failing to understand the invisible thresholds for scenario-specific selection.   Industrial LCDs: Reliability is the Top Priority   In scenarios such as industrial automation, energy, and transportation, LCDs operate in high-temperature, vibrating, and electromagnetic interference environments year-round. The core standards for industrial LCDs are the IEC 61000 series (electromagnetic compatibility) and GB/T 2423 (environmental testing), requiring wide-temperature operation (-30℃~85℃), high-brightness display (to cope with strong light), vibration resistance, and long service life (7~10 years). When selecting, always confirm the protection level (IP rating) and EMC immunity level; otherwise, static electricity or surges on the production line may cause the screen to fail.   Medical LCDs: Accuracy and Safety are the Bottom Line   Medical image diagnosis has completely different requirements for displays. Medical monitors must comply with the IEC 60601 series of medical electrical safety standards, with leakage current below 100μA, and strictly follow the DICOM Part 14 grayscale standard to ensure grayscale linearity and brightness consistency of images. Ordinary monitors cannot replace medical ones—the former pursues bright colors, while the latter emphasizes grayscale resolution and brightness stability; even a slight deviation may affect diagnostic results.   Selection Recommendations: Determine Standards by Scenario   l Industrial scenarios: Prioritize industrial LCDs with wide temperature range, high brightness, and EMC certification; pay attention to IP protection and anti-vibration design. l Medical scenarios: Must select medical-grade screens certified by IEC 60601; focus on DICOM calibration and antibacterial/anti-fog surface treatment. l Automotive/military: Refer to GJB 150 and GB 2423 standards; focus on environmental tests such as vibration, impact, and salt spray. An LCD cannot "fit all scenarios"—the selection logic varies greatly across different scenarios. When selecting for your next project, ask yourself: In what environment will this equipment be used?
