| Brand Name: | OEM/Customized |
| Model Number: | ZH050PIWVG002-01A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

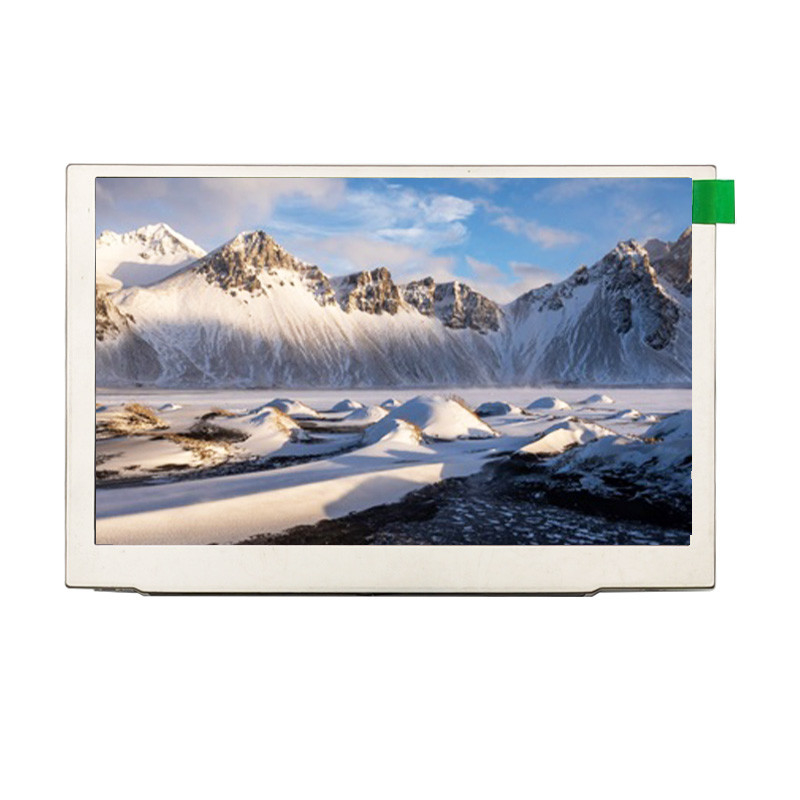

5 Inch 1000 Nits High Brightness LCD IPS 800×480 Industrial Display Module Optional Touch Panel
The ZH050PIWVG002-01A is 5 inch 1000 nits high brightness LCD module designed for industrial, embedded, and outdoor applications. Featuring IPS display mode, wide viewing angles, and high reliability, it delivers excellent visibility even under bright sunlight. With RGB 50pins interface and optional touch panel, this display module is ideal for OEM projects and embedded system integration.
Customization Options
Available customization services for this High Brightness LCD Display include:
Optical bonding with PCAP touch
Anti-Glare , Anti-Reflection Coating or Anti-finger
Custom FPC layout and pin
Custom Cover Glass
Key Features
High Brightness Display: 1000 cd/m² Suitable in outdoor and bright light environments.
IPS / Normally Black : Provides stable color and wide viewing angles.
Resolution: 800×480, clear visuals.
Interface: RGB 50pins connector
Driver IC: ST7265 ensures stable operation and compatibility.
Optional Touch Panel: Capacitive or resistive touch options available.
Compact & Durable: Dimensions 121 × 78.9 × 7 mm, suitable for embedded and portable devices.
Wide Temperature Range: Operating from -30°C to +80°C, storage from -40°C to +85°C.
Backlight: EDGE & WHITE LED with long lifetime.
Applications
Industrial HMI panels and control systems
Embedded systems and IoT devices
Outdoor kiosks, portable instruments, and handheld devices
Small display panels for automation or measurement devices
Product Specification
| item | ZH050PIWVG002-01A |
| Screen Size | 5.0 Inch |
| Resolution | 800x480 |
| Brightness | 1000 cd/m²(Typ.) |
| Interface | RGB, 50pins Connector |
| Driver IC | ST7265 |
| Display Mode |
IPS, Normally Black
|
| Active Aera | 108.00(W)x64.80(H) |
| Outline Dimension | 121.00(W)x78.90(H)x7.00(T) mm |
| Backlight | EDGE&WHITE LED |
| Operating Temperature | -30℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui High Brightness LCD Display?
Over 10 years of industrial LCD manufacturing experience.
OEM and ODM customization available (touch panel, interface, brightness).
Strict quality control and long-term supply guarantee.
Full technical support for integration and testing.
FAQ
Q1: Is this 5 inch LCD readable under direct sunlight?
A: Yes, with 1000 nits high brightness, it is sunlight readable for outdoor applications.
Q2: Does this module support touch functionality?
A: Yes, it comes with an optional touch panel (capacitive or resistive).
Q3: What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
Q4: Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
Q5: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q6: What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
Q7: Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
