| Brand Name: | OEM/Customized |
| Model Number: | ZH050PIWVG002-01A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

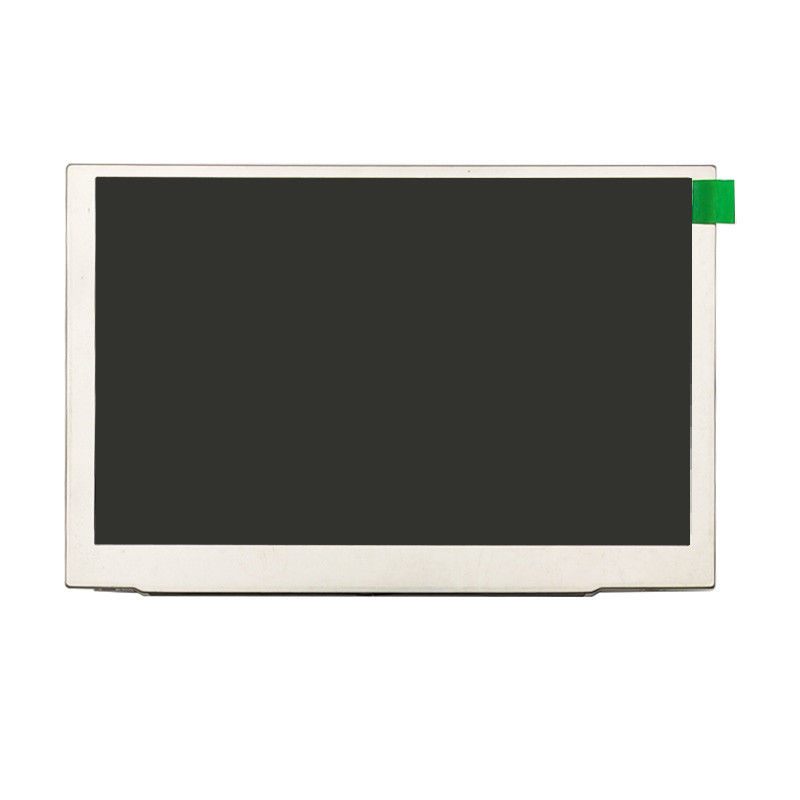

Custom 5 Inch Wide Temperature LCD Display 1000nits Optional Touch Panel
The ZH050PIWVG002-01A is a 5.0-inch Wide Temperature LCD module featuring a WVGA (800×480) resolution, high brightness up to 1000 nits, and excellent optical performance across extended environmental ranges. Designed for rugged embedded applications, this Wide Temperature LCD ensures operational reliability from –20°C to +70°C, with storage tolerance down to –30°C and up to +80°C.
Built with a 24-bit RGB parallel interface, anti-glare surface treatment, and a robust LED backlight system, this Wide Temperature LCD module is ideal for industrial, medical, transportation, and outdoor electronics.
This Wide Temperature LCD is engineered for performance-critical systems in harsh environments, where thermal fluctuations and outdoor exposure demand display stability.
Human–machine interfaces (HMI)
Outdoor industrial control panels
Diagnostic and medical imaging devices
Navigation and marine instrumentation
Vehicle-mounted equipment and kiosks
Company's focus on the core
Product Specification
| item | ZH050PIWVG002-01A |
| Screen Size | 5.0 Inch |
| Resolution | 800x480 |
| Brightness | 1000 cd/m²(Typ.) |
| Interface | RGB, 50pins Connector |
| Driver IC | ST7265 |
| Display Mode |
IPS, Normally Black
|
| Active Aera | 108.00(W)x64.80(H) |
| Outline Dimension | 121.00(W)x78.90(H)x7.00(T) mm |
| Backlight | EDGE&WHITE LED |
| Operating Temperature | -30℃~+80℃ |
| Storage Temperature | -40℃~+85℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium Wide Temperature LCD!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Integrate Brilliance - Order Samples Now!
