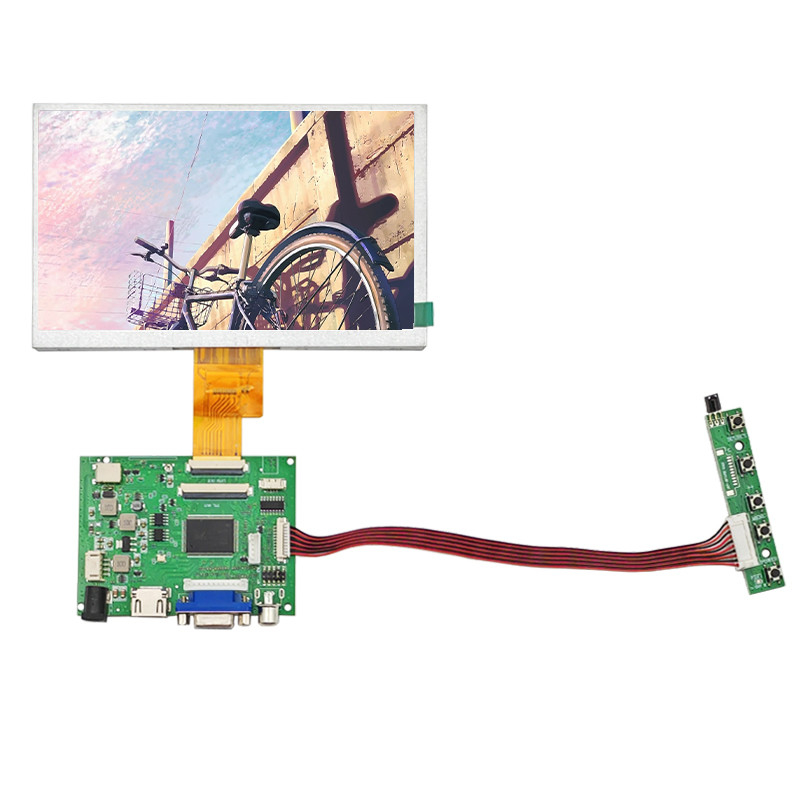

Wholesale 7 Inch HDMI LCD Display 1000 Nits High Brightness Industrial TFT LCD Module
Meta Description
Factory wholesale 7 inch HDMI LCD display, 1000 nits high brightness, 1024×600 resolution, TN panel, wide temp -20~70°C. Suitable for industrial equipment, kiosk, outdoor devices, embedded systems. OEM/ODM available.
This wholesale 7 inch HDMI LCD display is designed for industrial and commercial applications requiring high brightness and stable performance. With 1000 nits sunlight-readable brightness, it ensures excellent visibility in outdoor or strong-light environments.
Optional with HDMI Board kits. The 1024×600 TN panel delivers reliable image quality and long-term availability, ideal for mass production projects.
This 7 inch HDMI LCD display is widely used in industrial controllers, kiosk systems, handheld terminals, medical devices, automotive displays, and IoT equipment. OEM/ODM customization—including touch panel, HDMI board, cover glass and bonding—is available to support your product development.
Key Features
High Brightness for Outdoor use
1000 nits brightness for sunlight readable applications
Suitable for kiosks, handheld devices, outdoor terminals
HDMI Interface for Fast Integration
Direct HDMI input, plug-and-play
Industrial-Grade Design
Operating temperature: -20°C to +70°C
TN TFT panel, stable performance, wide compatibility
Long lifecycle supply for industrial customers
Compact 7-inch Size
Resolution: 1024×600
Optional Add-ons
Touch panel (RTP/CTP) optional
HDMI driver board optional
Custom cover glass / bonding / FPC
Application
This 7 inch HDMI LCD display is for:
Industrial Use
industrial controller display
human machine interface (HMI)
automation equipment
Commercial / Outdoor Equipment
outdoor kiosks
POS / vending machines
self-service terminals
charging stations display
Portable Device / Military / UAV
drone controller display
handheld instruments
field inspection equipment
Product Specification
| item | ZH070BH022-17C |
| Screen Size | 7.0 Inch TFT LCD |
| Resolution | 1024x600 |
| Brightness | 1000 cd/m²(Typ.) |
| Interface | LVDS, FPC 40PINS Connector |
| Display Mode |
TN,Normally White
|
| Active Aera | 154.21(W)x85.92(H) mm |
| Outline Dimension | 164.9(W) x100(H) x5.6(T) mm |
| Backlight | 30-Chip White LED, 300mA 9.3V |
| Lifetime | 20000Hrs(Min.) |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
| HDMI board | Optional HDMI Board kits |
Product Drawing
FAQ
Q1: Can this 7 inch HDMI LCD be used outdoors?
Yes. With 1000 nits brightness, it is suitable for outdoor sunlight readable applications.
Q2: Do you provide an HDMI driver board?
Yes, an HDMI board Kits is optional for easy integration.
Q3: Can we customize the touch panel or cover glass?
We support OEM/ODM including CTP/RTP touch, Cover Glass, bonding, FPC design, etc.
Q4. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
Q5. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
Q6. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q7.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
Q8. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
