| Brand Name: | OEM/Customized |
| Model Number: | ZH070BH053-08 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

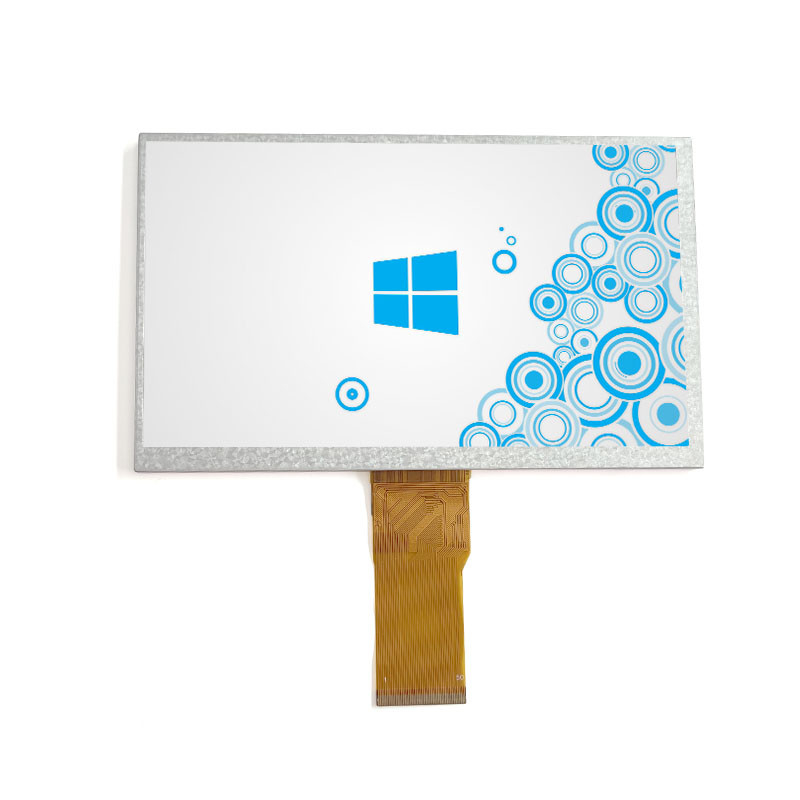

7-inch IPS Module with Sun Readable TFT LCD Screen 1024x600 Optional CTP
Our 7" TFT LCD Screen offers excellent visibility even in direct sunlight, with ultra-high brightness of 1000 nits and advanced anti-glare technology. Designed for industrial, outdoor and harsh environment applications, this display ensures crisp and clear visuals, wide viewing angles and reliable performance.
Technical Specifications:
Display Type: TFT LCD Screen, IPS, Normally Black
Resolution: 800 × 480 (WVGA) or Customizable
Viewing Angle: 85/85/85/85
Interface: LVDS/RGB/MIPI (Configurable)
Backlight: LED, 20000 hours lifetime
Touch Panel: Optional Resistive/Capacitive
Applications:
Suit for outdoor kiosks, marine navigation, construction machinery, agricultural equipment, transportation systems, and industrial HMI controls.
Recommended for outdoor use in direct sunlight, our 1000 nit sunlight readable TFT LCD Screen provide unmatched clarity, exceeding the limits of traditional displays. The ultimate solution for mission-critical visual systems.
Company's focus on the core
Product Specification
| item | ZH070BH053-08 |
| Screen Size | 7.0 Inch |
| Resolution | 1024x600 |
| Brightness | 1000 cd/m²(Typ.) |
| Interface | FPC, 50pins Connector |
| Display Mode |
IPS,Normally Black
|
| Viewing Angle | 85/85/85/85 |
| Lifetime | 20000Hrs (Min.) |
| Active Aera | 154.2144(W)x85.92(H) mm |
| Outline Dimension | 164.9(W) x100(H) x3.5(T) mm |
| Backlight | 27-Chip White LED, 180mA 16.5V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Screen!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Integrate Brilliance - Order Samples Now!
