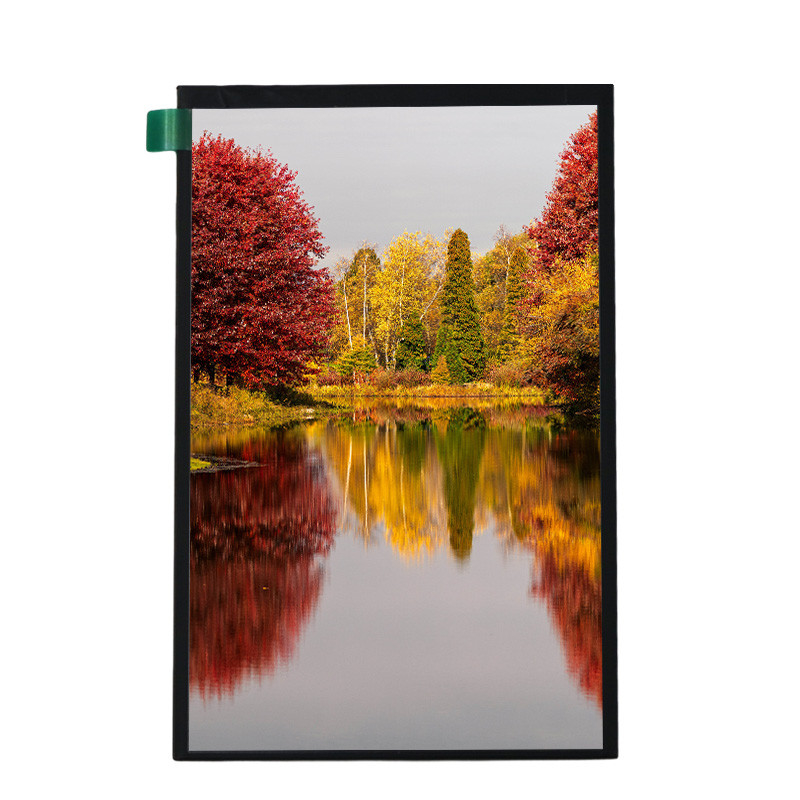

7 Inch IPS TFT LCD Screen 800x1280 HD MIPI Interface TFT Display 450nits Brightness Optional Touch Screen

The ZH070BH110-02A is a professional-grade 7 inch IPS TFT LCD screen, delivering clear 800x1280 HD TFT display resolution with wide viewing angles and 450 cd/m² brightness. Featuring a stable HD MIPI interface display with a 40-pin connector and a robust backlight rated for 30,000 hours, it ensures reliable operation from -10℃ to +50℃ (wide temp optional). Ideal for industrial HMIs, medical devices, and kiosks, it supports optional touch panels and full customization.

Technical Advantages

• HD IPS Display: 7.0-inch IPS (Normally Black) panel with 800x1280 resolution and wide 89/89/89/89 viewing angles for consistent color and clarity.
• High Reliability:450 cd/m² luminance, 850:1 contrast ratio, and 30ms (Typ.) response time ensure stable visual performance.
• MIPI Interface: 40-pin MIPI interface provides a high-speed, low-noise connection for seamless integration with modern embedded systems.
• Robust Design:Optional wide-temperature operation and a 16-chip WLED backlight with a minimum 30,000-hour lifespan for demanding environments.
• Touch & Customization: Supports optional Capacitive (CTP) or Resistive (RTP) touch screens. Full customization available (cover glass, backlight adjustment,interface, backlight, mechanical design).

Application Scenarios

• Industrial HMI & Control Panels
• Portable Medical & Diagnostic Devices
• Handheld Test & Measurement Equipment
• Self-Service Kiosks & POS Systems
• Embedded Display Terminals

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature  -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

Product Drawing

Why Choose ZhanHui High Brightness LCD Display?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Get Your Solution & Support

Integrate this display into your project:

• Request quote/datasheet (CAD, specs, pricing for ZH070BH110-02A)

• Discuss customization (size, brightness, interface, touch.

• Get technical integration guidance.

[Contact Us for Quote & Datasheet] or [Submit Your Project Specs]

Service & Warranty

We are committed to reliable products and seamless collaboration for every business partner.

• Quality Assurance: Strict industrial-grade testing

• Expert Support: Full guidance (selection → integration → after-sales)

• Flexible Cooperation: Samples, pilot runs, bulk production

• Global Service: Efficient logistics + local support
