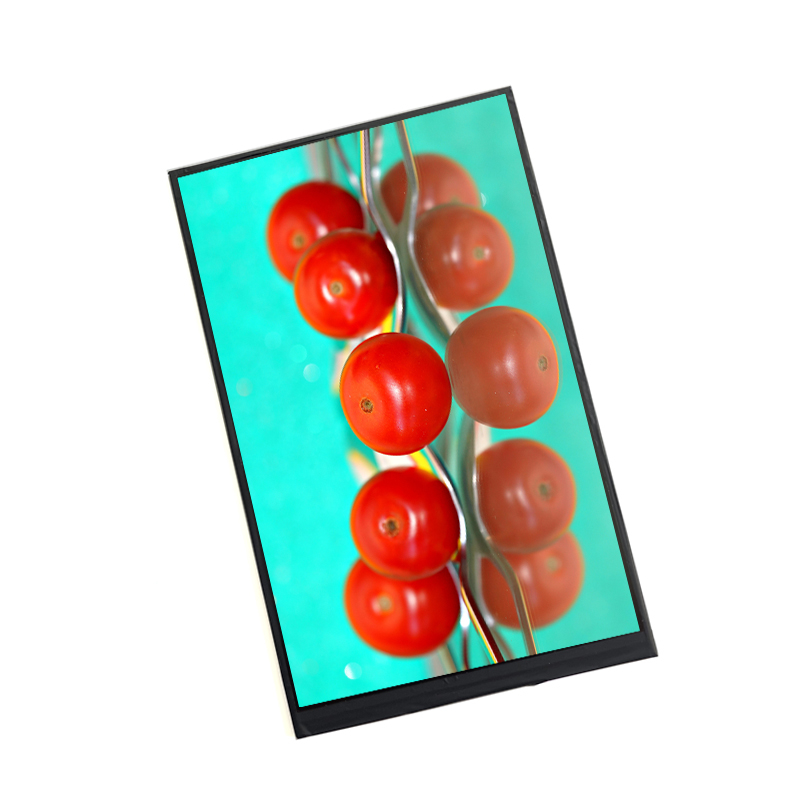

7 Inch TFT LCD Screen 800x1280 Resolution MIPI Interface Industrial LCD Module

Name: 7 Inch TFT LCD Screen 800x1280 Resolution MIPI Interface Industrial LCD Module
Brand: Shenzhen Zhanhui Photoelectric Technology Co., Ltd.
SKU: ZH070HH111-01
Availability: InStock

Brand Name:	OEM/Customized
Model Number:	ZH070HH111-01
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS、ISO9001、CE

Document:

ZH070HH111-01.pdf

Size:

7.0 Inch

Resolution:

800x1280

Brightness:

300 Cd/m² （Typ.）

Display Type:

IPS,Normally Black

Outline Dimensions:

99.85(W) X161.7(H) X 2.6 (T) Mm

Operating Temperature:

-10℃~+50℃

Packaging Details:

Foam Cotton And Carton Boxes

Supply Ability:

500K pcs/ Month

Highlight:

7 Inch TFT LCD MIPI Display

Industrial LCD Module 800x1280

TFT LCD MIPI Display 800x1280

Product Description

7 inch TFT LCD MIPI display industrial LCD module 800x1280 Resolution

ZH070HH111-01 is 7.0 inch TFT LCD Screen engineered by Shenzhen Zhanhui Photoelectric Technology Co., Ltd. Designed for demanding applications, this display combines high-resolution visuals (800(RGB)×1280), robust industrial reliability, and MIPI interface support. Ideal for medical devices, industrial HMI, portable instruments, and IoT terminals.

Key Features

7 Inch TFT LCD Screen

Compact size optimized for device space constraints, providing an effective viewing area within a limited panel footprint. It balances installation convenience with visual comfort, making it an ideal choice for various embedded applications.

800×1280 Resolution

Featuring a higher resolution than the conventional 800×480, it displays content with greater detail and sharper text and graphic edges, fully meeting the image precision requirements of industrial instruments, testing equipment, and interactive terminals.

MIPI Interface

Utilizes the high-speed MIPI (Mobile Industry Processor Interface) standard, known for low electromagnetic interference, high transmission rates, and low power consumption. It ensures reliable connectivity with mainstream processor platforms, making it suitable for industrial scenarios requiring dependable data communication.

Industrial-Grade Design

Adheres to industrial module standards, with enhancements in wide-temperature operation, durability, and anti-interference performance. It can withstand complex working environments such as vibration, dust, and temperature fluctuations, ensuring long-term, continuous, and stable operation.

Applications

Industrial control panels
Medical instruments
Retail and POS terminals
Smart home automation
Automotive infotainment
Outdoor kiosks and handheld devices

Company's focus on the core

Industrial-Grade TFT/OLED Displays (0.96" to 32")
Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
Touch Solutions: Resistive/Capacitive/Cover Glass
TN/IPS Panels | Custom Backlight Systems

Product Specification

item	ZH070HH111-01
Screen Size	7.0 Inch
Resolution	800x1280
Brightness	300 cd/m²(Typ.)
Interface	MIPI 4Lane, 31pins Connector
Display Mode	IPS,Normally Black
Driver IC	ILI988IC
Viewing Angle	89/89/89/89 (Typ.)
Life time	20,000 Hrs (Min.)
Active Aera	94.20(W) x 150.72(H) mm
Outline Dimension	99.85(W) x161.7(H) x 2.6 (T) mm
Backlight	20-Chip white LED, 80mA, 17.5V
Operating Temperature	-10℃~+50℃
Storage Temperature	-20℃~+60℃
Touch Panel	Optional Touch Panel

Product Drawing

7 Inch TFT LCD Screen 800x1280 Resolution MIPI Interface Industrial LCD Module 0

7 Inch TFT LCD Screen 800x1280 Resolution MIPI Interface Industrial LCD Module 1

Why Choose ZhanHui TFT LCD Screen?

Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
A powerful engineering support team offers a one-stop integrated solution
Flexible and efficient customization capabilities, with rapid response to demands
Strict quality control system (such as through IATF 16949, ISO 9001)
Global logistics and localized service support
Highly competitive cost-effectiveness

FAQ

1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
