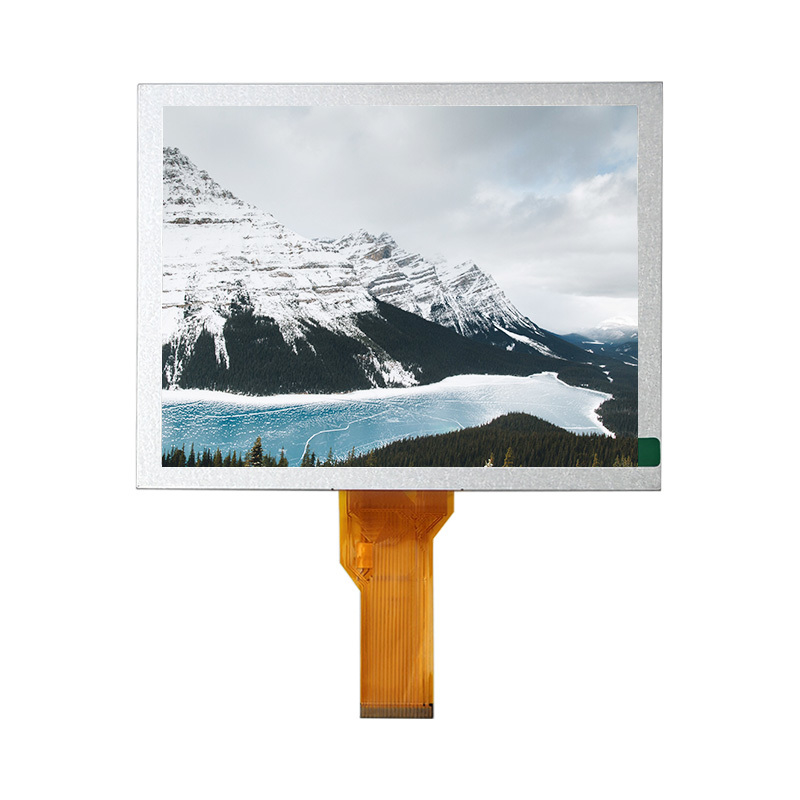

Industrial 8 Inch TN TFT LCD Display Screen 800x600 Brightness 500nits
The ZH080QESVG002-01A is an 8.0 Inch TFT LCD Screen suitable for outdoor harsh environments. Featuring an a-Si TFT active matrix, this transmissive display provides vivid visuals and stable performance, making it ideal for industrial, automotive, medical and automation systems.
This 8 Inch TFT LCD Screen is 800×RGB×600 (WVGA) resolution delivers sharp, vibrant visuals for industrial, medical, and commercial displays.
16.7M colors with NTSC 50% gamut ensures true-to-life color
The TFT LCD Screen 500 cd/m² brightness (typ.) with 75% uniformity for consistent visibility in high-ambient-light environments.
LED backlight (9.3V typ., 180mA) offers 50,000+ hours Lifetime
6 o’clock viewing direction and wide viewing angles (H: 70° typ., V: 50° typ.) for flexible installation.
The 8 inch TFT LCD Screen with 5.5mm ultra-thin profile (183.0×141.0×5.5mm) saves space in compact devices.
24-bit RGB interface with DE/HSYNC mode select (MODE pin).
Flexible scan direction control (U/D, L/R pins) for versatile PCB layout.
Hirose FH12A-50S-0.5SH FPC connector ensures secure signal transmission.
Company's focus on the core
Product Specification
| item | ZH080QESVG002-01A |
| Screen Size | 8.0 Inch |
| Resolution | 800x600 |
| Brightness | 500 cd/m²(Typ.) |
| Display Mode | TN, Normally White |
| Driver IC | EK79713B+EK73215B |
| Active Aera | 154.21(W) x85.92(H) mm |
| Outline Dimension | 183.0(W) x141.0(H) x 5.5(T) mm |
| Backlight | 27-Chip white LED,180mA 9.3V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Screen!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
