| Brand Name: | OEM/Customized |
| Model Number: | ZH101HH058-04 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |
10.1 Inch HDMI LCD Display Screen 1280x800 Resolution High Brightness 600nits IPS TFT LCD Panel

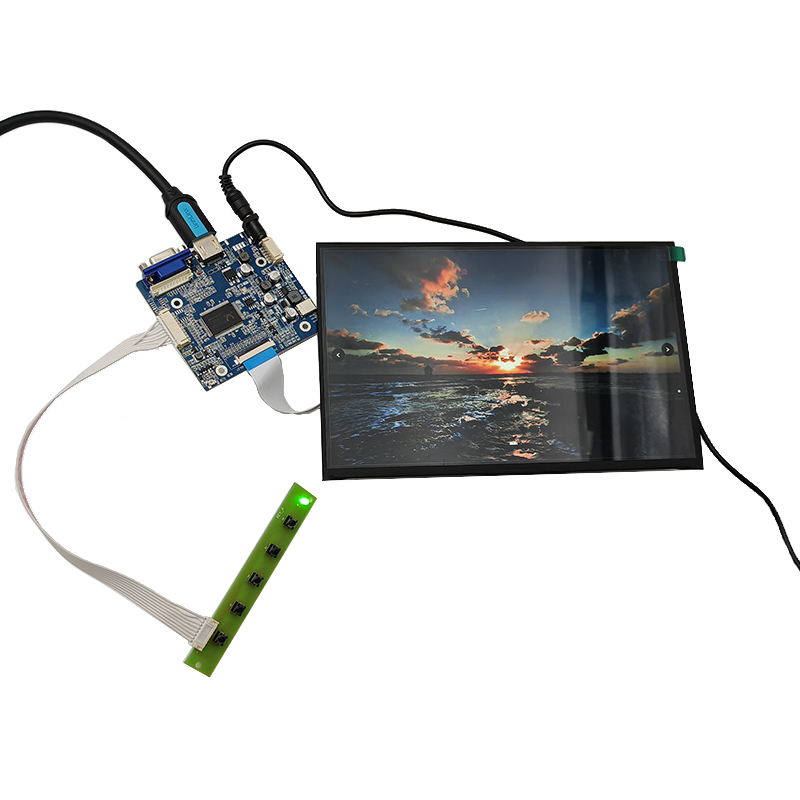

The ZH101HH058-04 is 10.1 inch High Brightness HDMI LCD Display delivers exceptional visual quality and versatility for a wide range of commercial and industrial applications. With 600 cd/m² brightness, 1280x800 resolution, and IPS technology, this HDMI LCD Display ensures sharp, bright, and vibrant visuals, making it an ideal solution for digital signage, POS terminals, embedded systems, and more. Featuring an LVDS interface and the option for an HDMI Board Kit, this display integrates seamlessly into both standard and custom solutions.
This 10.1 inch LCD module also supports customization, including touch panel options (CTP/RTP), interface modification, brightness enhancement, cover glass assembly, and wide-temperature versions for demanding environments.
The Industrial grade 10.1 inch LCD module is a highly versatile and reliable solution for a variety of industries, providing exceptional performance for both standard and custom applications.
1. Digital Signage
With its 600 cd/m² brightness and IPS technology, the 10.1 inch High Brightness HDMI LCD Display is ideal for digital signage applications in retail, malls, airports, and train stations.
2. POS Terminals
The 10.1 inch HDMI LCD display excels in Point-of-Sale (POS) systems, where reliability, user-friendly interfaces, and durability are key. The optional touch panel further enhances its usability for customer-facing applications.
3. Self-Service Kiosks
Whether used in ticketing systems, information kiosks, or vending machines, the High brightness 10.1 inch screen for kiosk provides a clear and engaging display. Its HDMI compatibility makes it easy to connect with various multimedia sources, and the optional touch panel enhances interactivity.
4. Embedded Systems
For embedded systems, the 10.1 inch TFT LCD display with HDMI driver board is perfect for medical devices, automation systems, and transportation displays. Its compact size, energy efficiency, and flexibility ensure seamless integration into complex systems.
5. Industrial Applications
IPS TFT LCD module for industrial applications is built to endure industrial environments where temperature fluctuations and continuous operation are common. With a wide operating temperature range and high durability.
Product Specification
| Item Number |
ZH101HH058-04
|
| Screen Size | 10.1 Inch |
| Resolution | 1280x800 |
| Brightness | 600 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 40pins Connector |
| Active Aera | 216.96(W) x135.6(H) mm |
| Outline Dimension | 229.26(W) x148.9(H)x2.5(T) mm |
| Backlight | 42-Chip White LED, 280mA 9.9V |
| Operating Temperature | 0℃~+55℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |
| HDMI Board Kits | Optional HDMI Board Kits |
Product Drawing
FAQ
1. Does this 10.1-inch display can supply a full display kit?
Yes. We can provide LCD + HDMI board + cables + touch panel as a complete solution
2. Is 600 nits bright enough for outdoor applications?
Sure. 600 nits is ideal for indoor and semi-outdoor use. For full outdoor sunlight, we can offer 800–1000 nits versions.
3. Can I add a touch panel to this display?
Yes. Both capacitive touch (CTP) and resistive touch (RTP) are available.
4. Do you support customization for industrial projects?
Yes. Options include brightness enhancement, touch panel, cover glass, interface changes, and wide-temperature versions.
5. What is the expected backlight lifetime?
Typically 30,000–50,000 hours, depending on brightness and usage.
