| Brand Name: | OEM/Customized |
| Model Number: | ZH320PIFHD002-02A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

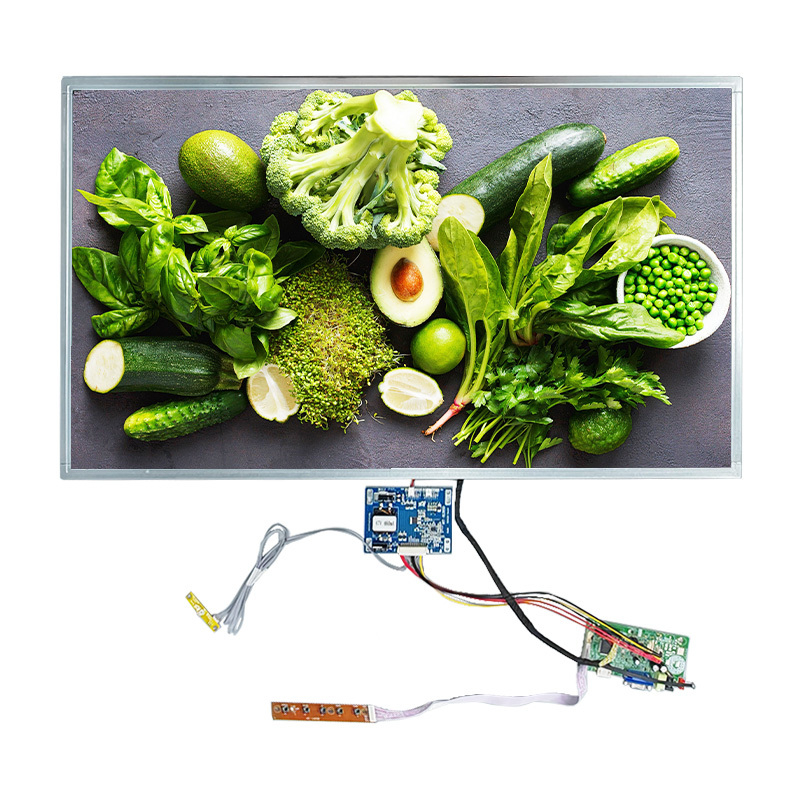

TFT LCD Panel Display 32 inch 1920x1080 resolution 500nits Optional with HDMI Board Kits
The ZH320PIFHD002-02A is 32-inch HDMI LCD Display. Featuring a resolution of 1920x1080, this display delivers vivid imagery and accurate color reproduction, powered by an IPS panel with a brightness of 500 cd/m² for clear viewing even in well-lit environments.
Designed with a LVDS 51-pin connector and an optional HDMI board, this HDMI LCD Display is ideal for seamless integration into industrial control systems, retail signage, transportation displays, and embedded solutions. The robust structure and optional touch panel further enhance its versatility for B2B deployments.
Key Features of the ZH320PIFHD002-02A HDMI LCD Display
Full HD 1920x1080 Resolution
This HDMI LCD Display delivers high-definition visuals, ideal for industrial, medical, and commercial display environments where clarity and detail are critical.
Optional HDMI Board for Flexible Connectivity
The ZH320PIFHD002-02A supports an optional HDMI interface, allowing plug-and-play compatibility with standard multimedia and computing devices—perfect for system integrators.
High Brightness 500 nits
With 500 cd/m² brightness, this HDMI LCD Display ensures superior visibility in indoor applications with bright ambient lighting.
Wide Viewing Angle IPS Panel
IPS technology provides consistent color accuracy and viewing angles up to 178°, ensuring high-performance display from any perspective.
Applications of ZH320PIFHD002-02A HDMI LCD Display
Industrial Control Panels & HMI Systems
Digital Signage in Retail & Corporate Environments
Medical Equipment Displays
Interactive Kiosks
Surveillance & Security Monitor Integration
Public Transportation & Passenger Information Displays
Product Specification
| Item Number | ZH320PIFHD002-02A |
| Screen Size | 32 Inch |
| Resolution | 1920x1080 |
| Brightness | 500 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 51pins Connector |
| Active Aera | 698.4(W) x 392.85 (H) mm |
| Outline Dimension | 725.23(W)x422.72(H)x14.40(T) mm |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| HDMI Board | Optional HDMI Board |
Product Drawing
FQA
Q1: Is this HDMI LCD Display compatible with standard PCs or media players?
A: Yes. With the optional HDMI board, the display can be directly connected to HDMI-enabled devices.
Q2: Can this model be customized with a touch panel?
A: Absolutely. A capacitive touch panel is available as an optional feature for interactive applications.
Q3: What industries typically use this HDMI LCD Display?
A: It’s widely used in industrial automation, retail displays, digital signage, kiosks, and control rooms.
Q4: Does it support 24/7 operation?
A: Yes. It is built with industrial-grade components for reliable, continuous operation.
Upgrade your device visibility with this premium TFT LCD Display!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
