| Brand Name: | OEM/Customized |
| Model Number: | ZH043PIFHD001-01A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

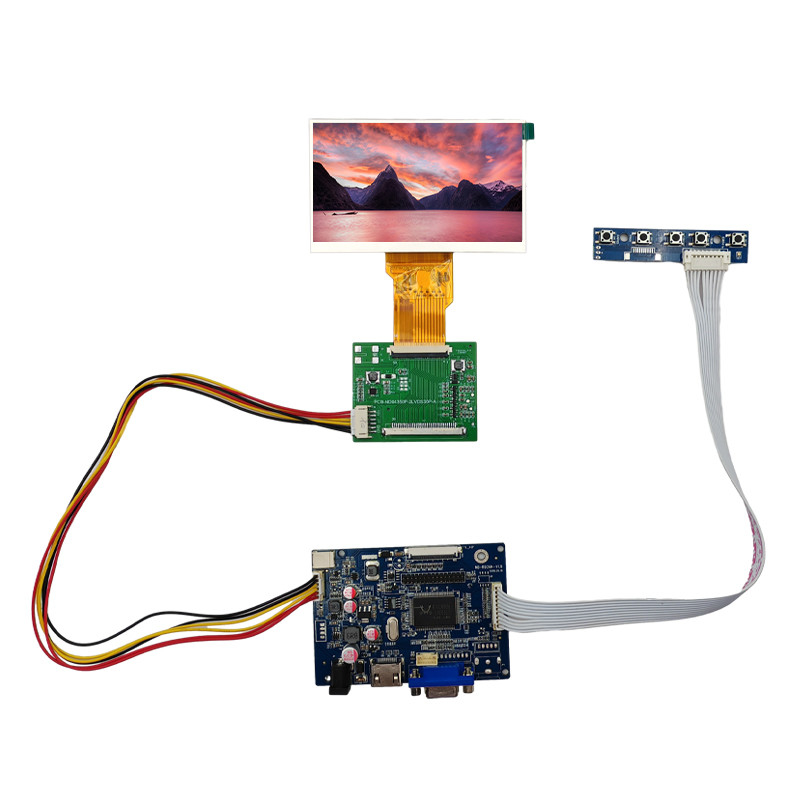

1920x1080 LCD TFT Display 4.3 Inch 1000nits Brightness Optional with HDMI Board
Our 1920x1080 LCD TFT Display (4.3 inch) is a premium HDMI LCD Display designed to meet the rigorous demands of industrial, medical, and embedded systems integrators. Featuring Full HD resolution, optional 1000nits high brightness, and a robust HDMI interface board, this module delivers unmatched visual clarity, versatility, and integration convenience.
Unlike standard small form-factor displays, our HDMI LCD Display integrates high-resolution imaging with industrial-grade components—delivering reliability, long-term availability, and full documentation support.
Key Features of 4.3 Inch HDMI LCD Display
4.3-inch TFT LCD Module
Compact footprint suitable for portable, embedded, and space-limited designs.
Full HD 1920×1080 Resolution
High pixel density provides crisp image clarity for UI, graphics, and real-time monitoring interfaces.
High Brightness up to 1000 nits
Ensures excellent visibility in bright, outdoor, or industrial lighting environments; optional brightness levels available.
Wide Operating Temperature
Designed for stable operation in harsh environments (e.g., –20°C to +70°C, depending on configuration).
Optional Touch Panel
Capacitive or resistive touch available to meet different interactive requirements.
Long-Term Supply & Industrial Reliability
Suitable for long-term OEM projects with stable availability and strict quality control
Typical Applications of 4.3 Inch HDMI LCD Display
Industrial HMI panels
Medical monitoring devices
Retail POS systems
Smart home control terminals
Embedded vision displays
Customization Options
We provide a range of customization services to support your project requirements:
Touch panel (RTP / CTP)
Brightness (500–1000 nits)
Optical bonding (OCA/OCR)
Cover glass printing, thickness & reinforcement
Product Specification
| item | ZH043PIFHD001-01A |
| Screen Size | 4.3 Inch |
| Resolution | 1920x1080 |
| Brightness | 1000 cd/m²(Typ.) |
| Interface | LVDS, 50pins Connector |
| Display Mode |
IPS, Normally Black
|
| Active Aera | 100.8(W) x 56.7(H) mm |
| Outline Dimensions | 106.34(W) x66.01(H) x 2.32(T) mm |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel (CTP or RTP) |
| HDMI Board | Optinal with HDMI board kits |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ
Q1:Does the 4.3 inch HDMI LCD support touch panel?
A: Optional Touch screen, based on your request.
Q2: What is the operating temperature range?
A: Operating Temperature:-20℃~+70℃, Storage Temperature:-30℃~+80℃
Q3: Is custom HDMI board supported?
A: Yes, we can do it.
Q4:Can I get 1000 nits brightness for outdoor applications?
A: Sure, the high brightness 1000nits is very suitable for outdoors use.
Q5. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
Q6.Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
Q7.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
