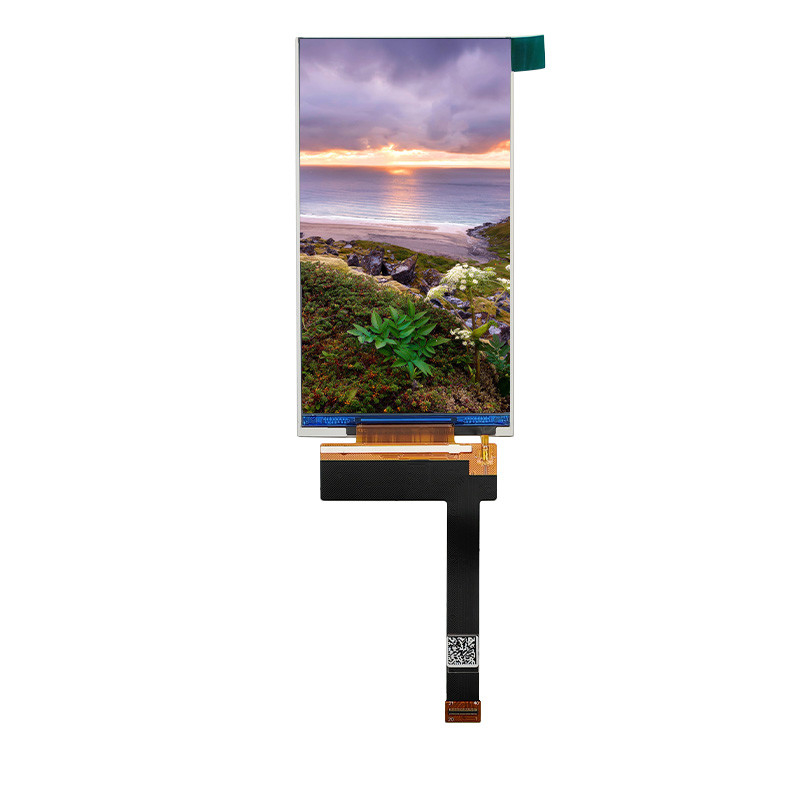

1000nits 5.0 Inch 720x1280 High Brightness LCD Display Optional Touch Panel

1000nits 5.0 Inch 720x1280 High Brightness LCD Display Optional Touch Panel

This High Brightness LCD Display offers a 5.0-inch IPS panel with 720x1280 resolution and 1000 cd/m² brightness, perfect for sunlight readability. With RGB interface and ILI9881C-05 driver IC, it ensures stable performance and vivid visuals.

Key features include a 40-pin connector, wide viewing angles, and a 12-chip white LED backlight (60mA @ 24V). Designed for rugged applications, it operates reliably from -20℃ to +70℃. Optional touch panel available.

The 5.0 inch High Brightness LCD Display Ideal for outdoor devices, industrial equipment, and portable terminals. Choose this High Brightness LCD Display for clear, durable, and high-performance screen integration.

Company's focus on the core

• Industrial-Grade TFT/OLED Displays (0.96" to 32")
• Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
• Wide Temperature  -30℃ to +80℃ ,-40℃ to +95℃
• Touch Solutions: Resistive/Capacitive/Cover Glass
• TN/IPS Panels | Custom Backlight Systems

Product Specification

Product Drawing

Why Choose ZhanHui High Brightness LCD Display?

• Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
• A powerful engineering support team offers a one-stop integrated solution
• Flexible and efficient customization capabilities, with rapid response to demands
• Strict quality control system (such as through IATF 16949, ISO 9001)
• Global logistics and localized service support
• Highly competitive cost-effectiveness

FQA

Q1: What makes this a High Brightness LCD Display?
A: It features a 1000 cd/m² (typ.) LED backlight, ensuring excellent visibility in direct sunlight or bright outdoor environments.

Q2: Is this display suitable for outdoor use?
A: Yes. With high brightness and a wide operating temperature range (-20℃ to +70℃), it’s ideal for outdoor and industrial applications.

Q3: Does this High Brightness LCD Display support touch input?
A: Touch functionality is optional and can be customized based on your application needs.

Q4: What devices commonly use this display?
A: It's widely used in handheld terminals, smart devices, marine equipment, kiosks, and other outdoor electronics.

Q5: What type of interface does it use?
A: It uses a 40-pin RGB interface, compatible with many embedded systems.
