| Brand Name: | OEM/Customized |
| Model Number: | ZH070BH110-02A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

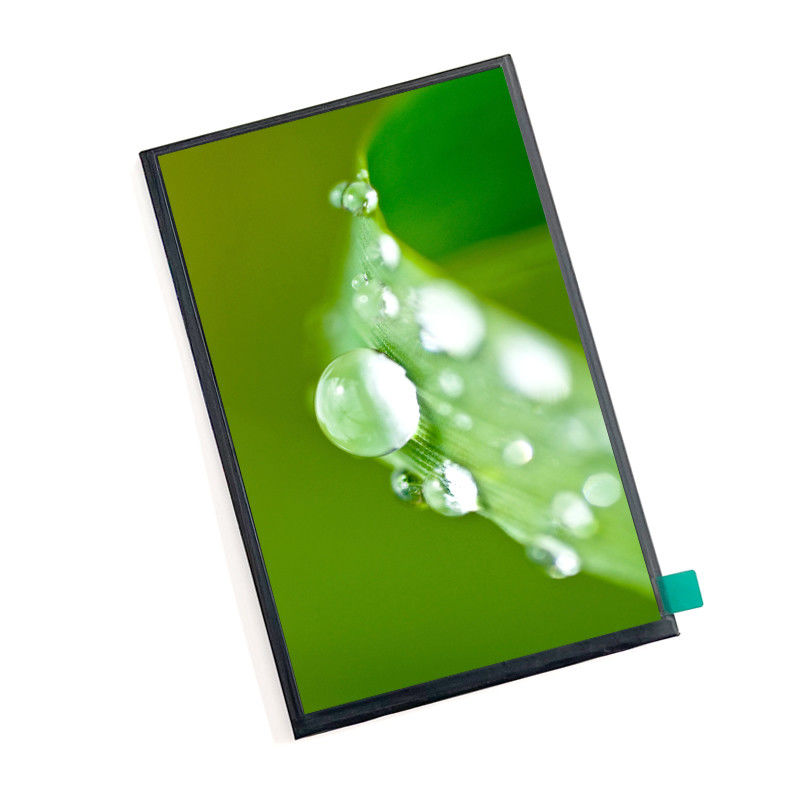

800x1280 Resolution 7 inch TFT LCD Screen MIPI 40pins 450nits Brightness
This 7 inch TFT LCD screen features an 800×1280 high resolution, is equipped with a MIPI 40pins interface, and offers a brightness of 450 nits, making it suitable for various scenarios that demand high display performance and reliability. Its compact size and high compatibility design support flexible integration and stable operation.
Centered on efficient integration and clear visibility, this screen can be widely embedded into portable devices, industrial interfaces, handheld terminals, and other products, meeting the needs of different fields for high-quality display and stable signal transmission.
Key Features
Compact and lightweight, it is suitable for embedded devices and portable terminals with limited space. It provides ample display area within a compact form factor, balancing ease of installation and visual comfort.
Delivers clear and detailed images and text, meeting the requirements for screen precision in industrial control, instrumentation, handheld devices, and other applications. Enhances information readability and user experience.
Utilizes the high-speed MIPI signal transmission protocol, ensuring compatibility with mainstream processor platforms. Provides stable and reliable data transmission, supporting rapid integration and development.
Maintains clear screen visibility even in outdoor or high-ambient-light environments. Suitable for mobile devices, automotive displays, outdoor terminals, and other scenarios requiring high visibility.
Application
Product Specification
| item | ZH070BH110-02A |
| Screen Size | 7.0 Inch |
| Resolution | 800x1280 |
| Brightness | 450 cd/m²(Typ.) |
| Interface | MIPI, 40pins Connector |
| Display Mode |
IPS,Normally Black
|
| Driver IC | JD9366AB-3 |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Lifetime | 30,000Hrs (Typ.) |
| Active Aera | 94.2(W) x 150.72(H) mm |
| Outline Dimension | 103.52(W) x162.09(H) x 2.66(T)mm ( MAX.) |
| Backlight | 16-Chip White LED, 80mA,24V |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ
Q1: What type of interface does the ZH070BH110-02A TFT LCD Screen use?
A1: The ZH070BH110-02A utilizes a MIPI 40-pin interface, making it suitable for high-speed data transfer and integration with a range of embedded systems.
Q2: Is this TFT LCD screen visible under bright conditions?
A2: With a brightness of 450 cd/m², this TFT LCD screen performs well in moderate lighting conditions, but may not be ideal for outdoor applications with direct sunlight exposure. For outdoor use, consider displays with higher brightness ratings.
Q3: Can I add a touch panel to this display?
A3: Yes, the ZH070BH110-02A offers optional touch panel integration (capacitive or resistive) to support interactive user interfaces.
Q4: What is the expected lifespan of the backlight?
A4: The backlight is rated for a minimum of 30,000 hours, providing a long lifespan and low maintenance.
Q5: What is the operating temperature range of the ZH070BH110-02A?
A5: The display operates within a temperature range of -10°C to +50°C, making it suitable for indoor and industrial environments.
