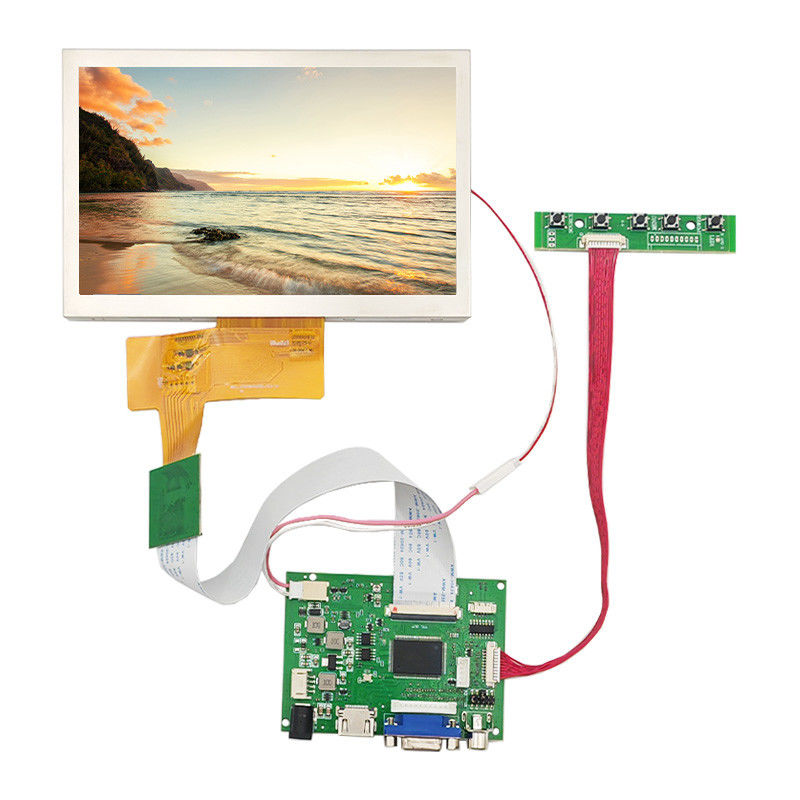

7 Inch TFT 800x480 Resolution HDMI LCD Display 480nits Brightness Optional Driver board
This 7 inch 800×480 HDMI TFT LCD module is 480nits brightness industrial display designed for embedded systems, kiosks, handheld devices, and industrial control applications. it provides clear readability in moderately bright indoor and semi-outdoor environments.
Featuring wide operating temperature (-30°C to +85°C) and IPS panel technology, it ensures stable performance, wide viewing angles, and reliable 24/7 operation. This module supports standard HDMI driver board and optional touch panels, making it ideal for OEM and industrial projects.
Key Features of 7 inch HDMI LCD Display
7.0″ TFT LCD panel with 800×480 resolution
480 nits high brightness for clear display in bright conditions
IPS technology with wide viewing angles
Industrial-grade reliability for 24/7 operation
Optional touch panel (PCAP / Resistive)
Compatible with embedded systems, kiosks, POS terminals, and handheld devices
OEM / ODM customization available
Advantages of 7 Inch TFT HDMI LCD Display
Wide viewing angle for industrial and embedded applications
Stable operation in wide temperature ranges
Flexible OEM/ODM support: touch, frame, brightness, driver board
Compact 7-inch module suitable for embedded systems and kiosks
Applications of 7 Inch Industrial LCD Display
Industrial control panels & embedded systems
Handheld devices and portable terminals
Point of Sale (POS) terminals
Kiosk displays & self-service terminals
Transportation & public information systems
Product Specification
| item | ZH070CIWVG002-01A |
| Screen Size | 7.0 Inch |
| Resolution | 800x480 |
| Brightness | 480 cd/m²(Typ.) |
| Interface | LVDS 4Lane, 40 pins Connector |
| Display Mode |
IPS,Normally Black
|
| CR | 1000 (Typ.) |
| Viewing Angle | 80/80/80/80 (Typ.) |
| Life time | 30,000 Hrs (Min.) |
| Active Aera | 152.4(W) x91.44(H) mm |
| Outline Dimension | 166.6(W) x 109.4(H) x 5.7(T)mm |
| Backlight | 27-Chip white LED, 360mA, 9.9V |
| Operating Temperature | -35℃~+85℃ |
| Storage Temperature | -40℃~+90℃ |
| Touch Panel | Optional Touch Panel |
| HDMI Board | Optional HDMI Board kits |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ
Q1: Is this 7-inch LCD suitable for outdoor use?
Yes, with 480 nits brightness, it is suitable for moderately bright indoor and semi-outdoor environments.
Q2: What is the operating temperature range?
-30°C ~ +85°C, suitable for industrial and embedded applications.
Q3: Does it support touch functionality?
Yes, optional PCAP or resistive touch panels can be integrated.
Q4: Can this display be customized for OEM projects?
Yes. Brightness, touch panel, driver board can all be customized.
Q5: What is the typical backlight lifetime?
≥ 30,000 hours, depending on usage conditions.
