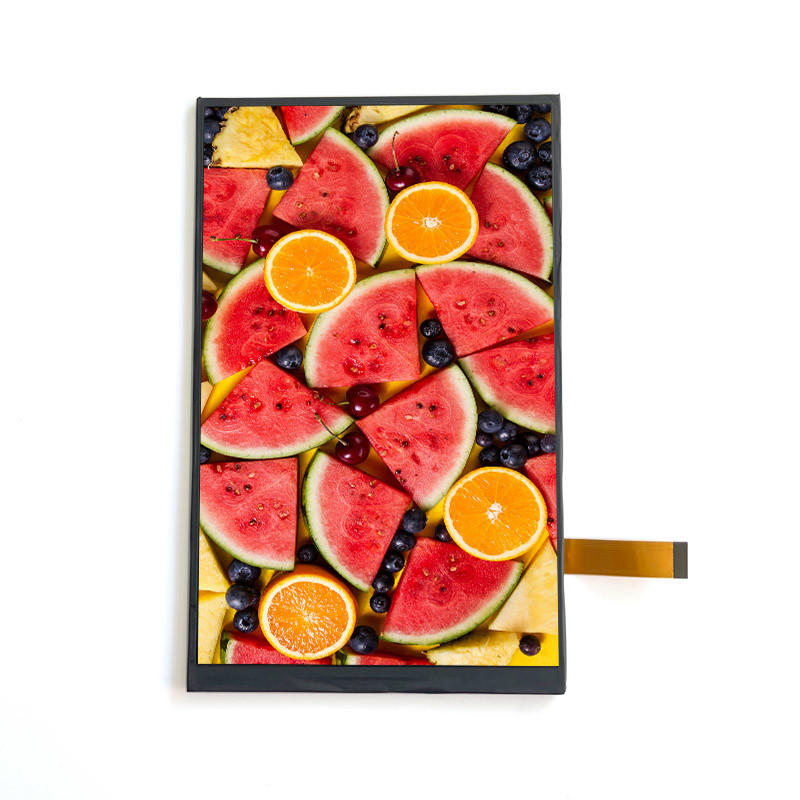

7.0-inch TFT LCD Module 800×1280 Resolution MIPI 31pins Optional CTP
ZH070HH106-03 is a high-performance 7.0-inch TFT LCD Screen designed for professional applications requiring superior visual quality and reliability. This transmissive color active matrix display features amorphous silicon thin film transistor (a-Si TFT) technology with a native resolution of 800(RGB)×1280, delivering crisp 16.7 million color reproduction.
7.0 Inch TFT LCD Screen Module Key Features & Competitive Advantages
Native Resolution: 800(RGB)×1280 (WXGA)
Active Area: 94.20(W) × 150.72(H) mm
Brightness: 300 cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.)
Color Gamut: 60% NTSC (Typ.)
Viewing Angle: 89° All Directions (Free viewing direction)
Robust Industrial Design
Anti-Glare Surface: 3H Hardness Coating
Wide Temp Range:
Operation: -20°C to +60°C
Storage: -30°C to +70°C
MIPI Interface: 4 Lanes (Supports high-speed data transfer)
Longevity & Reliability
Backlight Lifetime: 20,000+ hours (Typ.)
ESD Protection: ±8KV Contact / ±4KV Air (Class B)
Certified Reliability: Vibration/Shock/Drop tests per JIS standards
Company's focus on the core
Product Specification
| item | ZH070HH106-03 |
| Screen Size | 7.0 Inch |
| Resolution | 800x1280 |
| Brightness | 300 cd/m²(Typ.) |
| Interface | MIPI, 31pins Connector |
| Display Mode |
IPS,Normally Black
|
| Driver IC | ILI988IC |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Life time | 20,000 Hrs (Min.) |
| Active Aera | 94.20(W) x 150.72(H) mm |
| Outline Dimension | 99.85(W) x161.7(H) x 2.6 (T) mm |
| Backlight | 20-Chip white LED, 80mA, 17.5V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Screen!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Integrate Brilliance - Order Samples Now!
