| Brand Name: | OEM/Customized |
| Model Number: | ZH070HH111-01 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

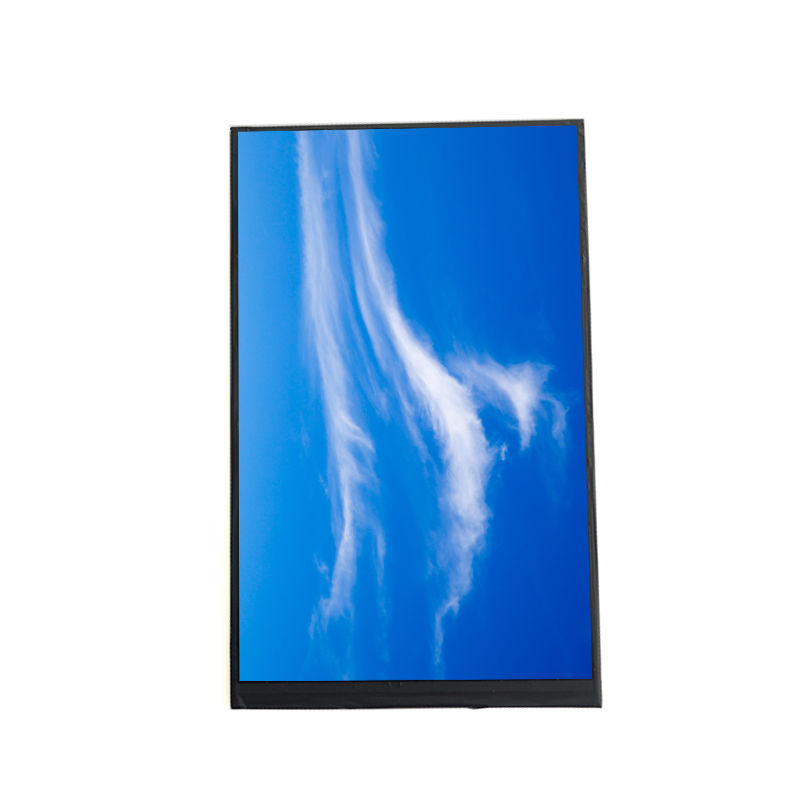

7 Inch LCD Display 800x1280 TFT LCD Screen 300nits Brightness Optional Touch Screen
Boasting 800x1280 resolution, the TFT LCD screen delivers sharp image details and vivid color rendering. It provides clear display effects for small-space data presentation and smart device interfaces, well adapting to handheld and terminal equipment scenarios.
With 300 nits typical brightness, the display ensures comfortable and clear viewing in indoor environments. It effectively resists slight ambient light interference, avoiding eye fatigue during long-time use.
Supporting optional capacitive or resistive touch, the display enables intuitive interactive operation. Combined with its compact size, it meets B2B demands for human-computer interaction in smart home controls, medical terminals and other devices.
Target Applications
Product Specification
| item | ZH070HH111-01 |
| Screen Size | 7.0 Inch |
| Resolution | 800x1280 |
| Brightness | 300 cd/m²(Typ.) |
| Interface | MIPI 4Lane, 31pins Connector |
| Display Mode |
IPS,Normally Black
|
| Driver IC | ILI988IC |
| Viewing Angle | 89/89/89/89 (Typ.) |
| Life time | 20,000 Hrs (Min.) |
| Active Aera | 94.20(W) x 150.72(H) mm |
| Outline Dimension | 99.85(W) x161.7(H) x 2.6 (T) mm |
| Backlight | 20-Chip white LED, 80mA, 17.5V |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Screen!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Integrate Brilliance - Order Samples Now!
