| Brand Name: | OEM/Customized |
| Model Number: | ZH70324T1 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

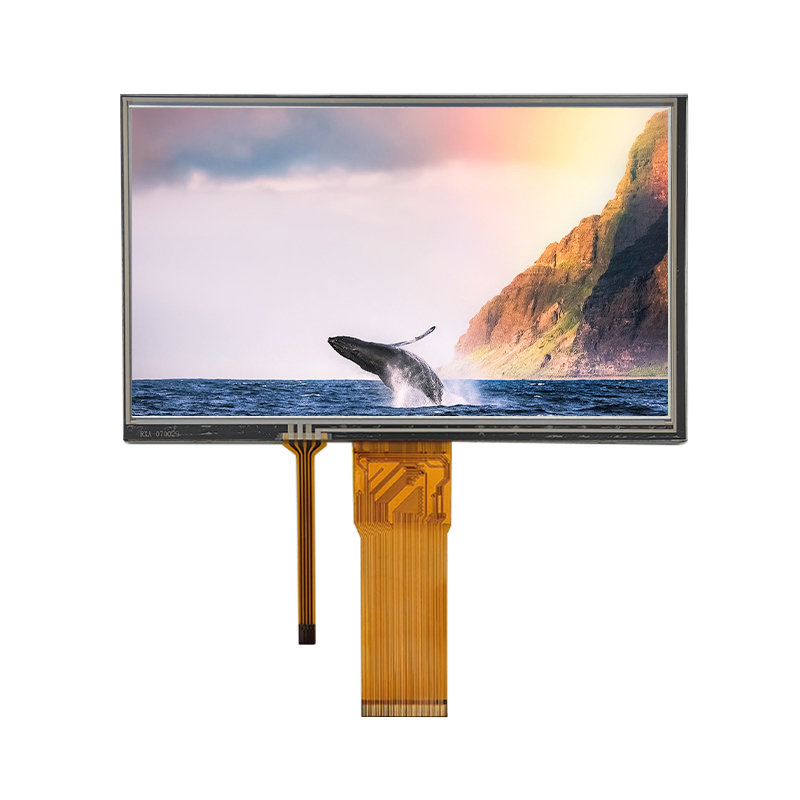

7 Inch LCD Module 1024x600 IPS Panel Brightness 300nits with RTP
ZH70324T1 LCD Module — a professional-grade 7-inch TFT-LCD solution designed for industrial, automotive, and commercial devices requiring high clarity, wide-angle viewing, and responsive touch control. Engineered by Shenzhen ZhanHui Optoelectronic Technology Co., Ltd., this module delivers dependable visual performance with user-friendly integration.
All-Angle Visibility: IPS technology ensures consistent brightness and color from every viewing angle — no color washout, even in tilted installations.
Touch scree: Integrated resistive touch panel is ideal for rugged environments such as industrial equipment, kiosks, or vehicles where capacitive touch is less effective.
Durable Build: Operating in extreme temperatures and high humidity makes it a solid choice for outdoor or industrial applications.
High Compatibility: 24-bit RGB input and standard structure make it plug-and-play with various systems and platforms.
Target Applications
Industrial HMI: Resists dust, vibration, and temperature swings.
Medical Devices: High contrast for clear diagnostics.
Portable POS/ATMs: Low power + wide viewing angles.
Automotive Dashboards: Reliable under extreme conditions.
Company's focus on the core
Product Specification
| item | ZH70324T1 |
| Screen Size | 7.0 Inch |
| Resolution | 1024x600 |
| Brightness | 300 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | RGB 24 bit, 50pins Connector |
| Active Aera | 154.21(W) x 85.92(H) mm |
| Outline Dimension | 165(W) x100(H) x5.05(T) mm |
| Backlight | 27-Chip white LED, 180mA 9.3V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Module!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
