| Brand Name: | OEM/Customized |
| Model Number: | NV173FHM-N4F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T,Paypal |

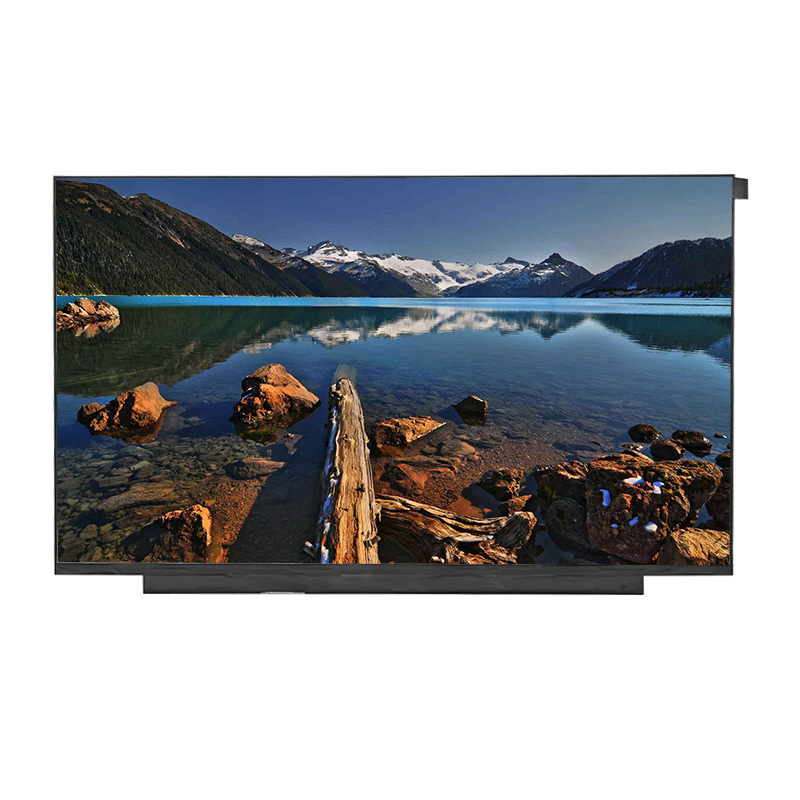

Full HD 17.3 Inch TFT LCD Display 1920x1080 with EDP 500nits Brightness
The NV173FHM-N4F is 17.3-inch HD TFT LCD display built for high-resolution performance in industrial, commercial, and embedded system applications. With a 1920x1080 (Full HD) resolution, 500 cd/㎡ brightness, and EDP 30-pin interface, this display offers clear, vibrant visuals ideal for dynamic environments where reliability and clarity are critical.
This HD TFT LCD display is ideal for system integrators, OEMs, and developers seeking scalable, high-performance display modules. Whether you're upgrading an existing product line or designing a new application, the NV173FHM-N4F offers the reliability and visual clarity required in professional settings.
Applications:
Industrial Automation & Machine Interfaces
POS and Interactive Retail Displays
Digital Signage & Information Panels
Embedded Computing Systems
Medical Equipment Monitors
Transportation Control Terminals
Why Choose This HD TFT LCD Display?
Full HD Resolution for Clear Visuals
The NV173FHM-N4F delivers sharp 1920x1080 resolution, ideal for real-time display monitoring, industrial UIs, and embedded visual applications.
Enhanced Brightness and Wide Viewing Angle
With a typical brightness of 500 cd/㎡, this HD TFT LCD display ensures optimal visibility in both indoor and semi-outdoor environments.
Durable and Reliable
Backed by a 15,000-hour minimum lifetime and industrial-grade operating temperatures, it’s designed for 24/7 professional use.
Slim and Compact Design
At only 3.5mm max thickness, it offers a sleek form factor for space-sensitive integrations.
Company's focus on the core
Product Specification
| Item Name |
NV173FHM-N4F
|
| Screen Size | 17.3 Inch |
| Resolution | 1920x1080 |
| Brightness | 500 cd/㎡ (Typ.) |
| Interface | EDP, 30pin Connect |
| Active Aera |
381.888(W) x 214.812(H) mm
|
| Outline Dimension |
389.888(W)x238.312(H)x 3.5 (T) mm (Max.)
|
| Lifetime | 15,000 Hrs (Min.) |
| Operating Temperature | 0℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Touch Panel | Optional Touch Screen |
Product Drawing
FAQ
Q1: What is the main application of this HD TFT LCD display?
A: The NV173FHM-N4F is widely used in industrial control systems, medical monitors, POS terminals, transportation dashboards, and embedded computing displays. Its Full HD resolution and optional touch support make it ideal for professional applications that require clarity and interaction.
Q2: What is the typical lifespan of the display?
A: This panel offers a minimum backlight lifetime of 15,000 hours, making it suitable for long-term industrial use. For extended durability, we also support customized models.
Q3: Do you offer custom solutions or OEM services?
A: Absolutely. For B2B clients, we provide OEM/ODM customization, including touch panel bonding, HDMI driver integration, cover glass printing, and more—tailored to your system architecture.
Q4: Is there any MOQ (Minimum Order Quantity)?
A: For standard models, we support low MOQ for sample testing. For bulk or long-term orders, please contact our sales team for flexible pricing and lead time arrangements.
Request a Quote or Sample
For pricing, lead times, or detailed integration support for the NV173FHM-N4F HD TFT LCD display, please contact our B2B sales specialists. We offer full technical documentation and engineering assistance.
