| Brand Name: | OEM/Customized |
| Model Number: | ZH101BH015-05 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

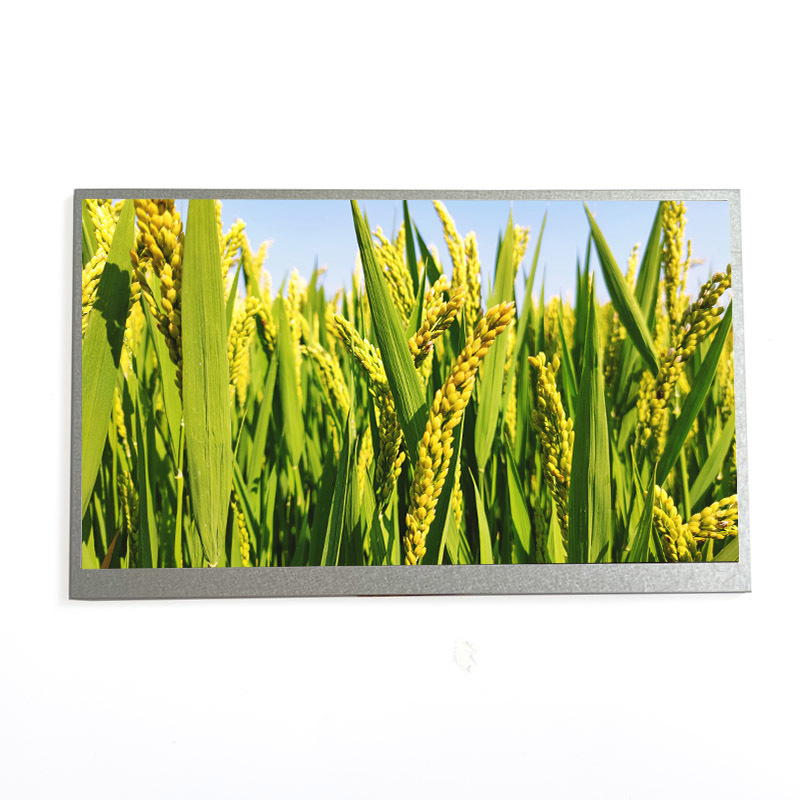

Smart Home 10.1 inch LVDS interface TN Screen LCD display 1024x600 resolution
The ZH101BH015-05 is 10.1-inch TFT LCD Screen module featuring a-Si TFT technology and a transmissive, normally white display mode. With resolution of 1024×RGB×600 and 16.7 million colors, this module delivers clear, vibrant images ideal for embedded systems, industrial control panels, automotive displays, and commercial terminals.
The TFT LCD Screen 10.1 inch resolution of 1024x600 for sharp, high-definition visuals.
10.1 Inch TFT LCD Screen with Brightness 250 cd/m² (Typ.) ensuring clear visibility in various lighting conditions.
Operating Temp: -20°C to 60°C (storage: -30°C to 70°C).
Anti-Glare & 3H Hardness Coating – Resists scratches and minimizes reflections.
The 10.1-Inch LCD Display of Backlight: 27-chip WLED array with 180mA drive current .
LVDS Interface (6-bit/8-bit selectable via SELB pin).
Applications for 10.1 Inch TFT LCD Screen:
Industrial HMI (Human-Machine Interface)
Smart Home Control Panels
Medical Equipment Displays
POS & Retail Kiosks
EV Charging Stations
Automotive Infotainment Systems
Surveillance & Security Terminals
Company's focus on the core
Product Specification
| Item Number | ZH101BH015-05 |
| Screen Size | 10.1 Inch |
| Resolution | 1024x600 |
| Brightness | 250 cd/m²(Typ.) |
| Display Mode | TN, Normally White |
| Interface | LVDS, 40pins Connector |
| Active Aera | 222.72(W) x125.28(H) mm |
| Outline Dimension | 235.0(W) x143.0(H) x2.8(T) mm |
| Backlight | 27-Chip white LED,180mA 10.5V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Module!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
