| Brand Name: | OEM/Customized |
| Model Number: | ZH101BH053-01B |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

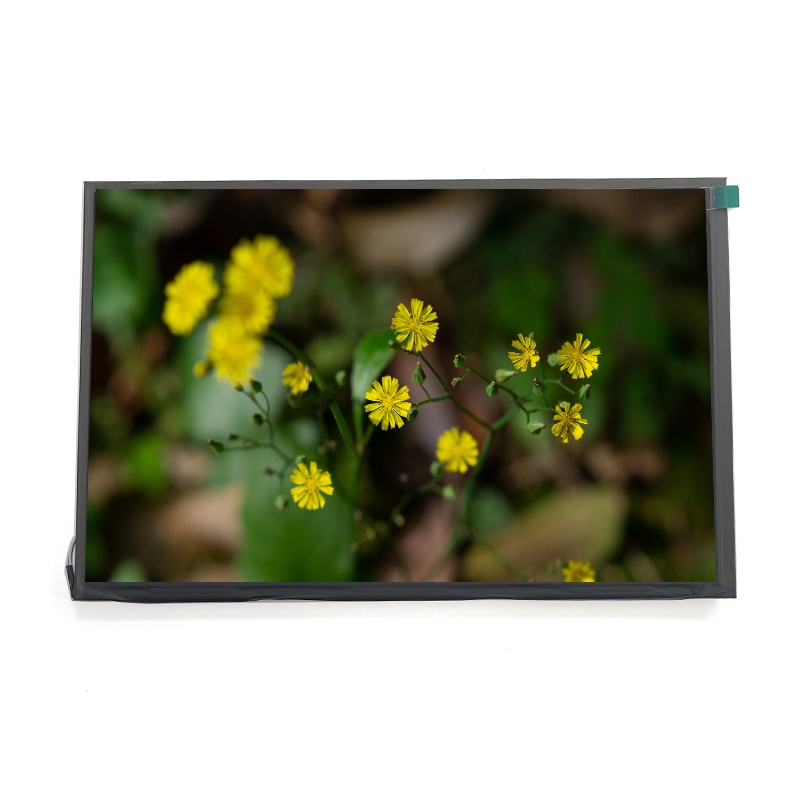

Industrial Control 10.1 Inch High Brightness LCD Display 1920x1200 Resolution
The ZH101BH053-01B 10.1 Inch High Brightness LCD Display is engineered for superior visual performance in industrial control applications. With a 1920x1200 resolution, 500 cd/m² brightness, and IPS technology, this High Brightness LCD Display ensures exceptional clarity and visibility in demanding environments. Its robust design, wide operating temperature range, and optional touch panel make it ideal for industrial automation, HMI (Human Machine Interface) systems, digital signage, and more.
500 cd/m² Brightness for Enhanced Visibility
With a brightness rating of 500 cd/m², the ZH101BH053-01B excels in environments where ambient light could otherwise compromise visibility. The high brightness ensures that the display is legible in well-lit factory floors, control rooms, and public-facing environments, making it a top choice for industrial applications.
Compact and Space-Efficient Design
With outline dimensions of 229.2(W) x 149.8(H) x 4.5(T) mm, the ZH101BH053-01B is engineered for easy integration into space-constrained environments. Its slim profile is ideal for embedded systems, HMI displays, and industrial equipment where compact form factors are essential.
Optional Touch Panel for Interactive HMI Solutions
The optional touch panel provides interactive functionality, making the ZH101BH053-01B ideal for HMI applications, self-service kiosks, and industrial touchscreens. With the addition of the touch panel, users can engage with the system through intuitive gestures, improving operational efficiency and user experience.
Product Specification
| Item Number |
ZH101BH053-01B
|
| Screen Size | 10.1 Inch |
| Resolution | 1920x1200 |
| Brightness | 500 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | LVDS, 45pins connector |
| Active Aera | 216.8064(W)x135.504(H) mm |
| Outline Dimensions | 229.2(W)x149.8(H)x4.5(T) mm |
| Backlight | LED, 220mA 23V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FAQ
Q1: What is the brightness of the ZH101BH053-01B display?
A1: The ZH101BH053-01B features a 500 cd/m² brightness, providing excellent visibility in moderately lit environments, making it suitable for industrial control systems, automation panels, and digital signage.
Q2: Is the ZH101BH053-01B suitable for outdoor use?
A2: The ZH101BH053-01B is designed for indoor environments. However, for outdoor applications, additional protection (such as enclosures) may be required to shield the display from weather and other environmental factors.
Q3: Does the ZH101BH053-01B support touch functionality?
A3: Yes, the ZH101BH053-01B supports an optional touch panel, making it an excellent choice for interactive HMI systems and self-service kiosks.
Q4: What type of interface does the ZH101BH053-01B use?
A4: The ZH101BH053-01B utilizes an LVDS interface with a 45-pin connector, offering reliable and high-speed data transmission, ideal for industrial control systems and
Upgrade your device visibility with this premium TFT LCD Module!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
