| Brand Name: | OEM/Customized |
| Model Number: | ZH070BH018-08 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

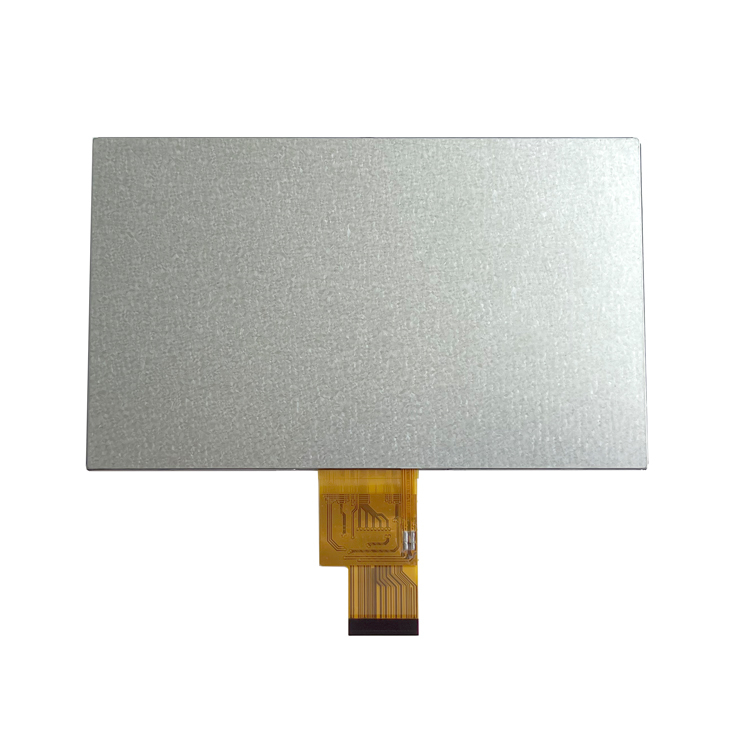

1024x600 TFT LCD Display 7.0 Inch 1000nits High Brightness Optional RTP Touch Panel
The ZH070BH018-08 is 7.0 inch TN LCD display module, ideal for applications requiring compact size and reliable performance in various industrial and commercial settings. This 7 inch LCD Display features a high brightness of 1000 cd/㎡, ensuring excellent visibility even in bright environments. With its 1024x600 resolution and 30-chip white LED backlight, the screen delivers clear, vibrant images for a wide range of professional applications.
This display module comes with an LVDS interface and 40-pin connector, offering easy integration with a variety of embedded systems and devices.
Additionally, this 7 Inch High Brightness LCD Display is designed with durability in mind, with an operating temperature range from -20℃ to +60℃ and a storage temperature range from -30℃ to +70℃, ensuring reliable performance in harsh environments.
Optional RTP Touch Panel: Upgrade your user experience with the optional RTP (Resistive Touch Panel), providing precise and durable touch functionality. The RTP Touch Panel enhances interactivity and is suitable for applications such as kiosks, point-of-sale (POS) systems, industrial control panels, and more.
The 7 inch industrial display is well-suited for a wide range of applications in industries such as:
Product Specification
| item | ZH070BH018-08 |
| Screen Size | 7 Inch |
| Resolution | 1024x600 |
| Brightness | 1000 cd/㎡ (Typ.) |
| Interface | LVDS, 40pins Connector |
| Backlight Type | 30-Chip White LED 200mA 20V |
| Display Mode | TN, Normally White |
| Active Aera | 85.92(W) x154.2144(H) mm |
| Outline Dimension | 164.9(W) x100(H) x2.8(T) mm |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional RTP touch panel |
Product Drawing
FAQ- 7 Inch 1000nits High Brightness LCD Module (ZH070BH018-08)
1. Can the brightness of 1000 nits be customized?
Yes. We offer customization options such as 600nits / 800nits / 1200nits high brightness based on your power consumption, outdoor readability, or cost requirements.
The backlight can be adjusted by modifying LED current or driver board settings.
2. Is an RTP touch panel included?
The touch panel is optional.
We offer:
RTP (Resistive Touch Panel) – cost-effective, suitable for glove operation
If you need PCAP/CTP (capacitive touch), we can also support OEM customization.
3. What is the operating lifetime of the LED backlight?
The backlight uses 30-chip White LED with stable industrial quality.
Typical lifetime exceeds 30,000–50,000 hours, depending on brightness level and thermal conditions.
4. Can you provide a driver board for this 7-inch LVDS LCD?
Yes. We supply LVDS driver boards, HDMI boards, and full display solutions.
This helps you speed up evaluation and reduce engineering time in prototype development.
5. Does this 7-inch LCD support long-term supply for mass production?
Absolutely.
This model is designed for industrial supply cycles, ensuring long-term availability and stable yearly demand for OEM/ODM customers.
6. What is the lead time for samples and mass orders?
Samples: 3–7 working days
Mass production: 2–4 weeks depending on quantity
We also support urgent production schedules for project deadlines.
7. Do you offer customized cables, connectors designs?
Yes.
We provide OEM customization for:
LVDS cable
Touch panel
Backlight brightness
FPC length and pin assignment
