| Brand Name: | OEM/Customized |
| Model Number: | ZH156QH001-01C1-TK1 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

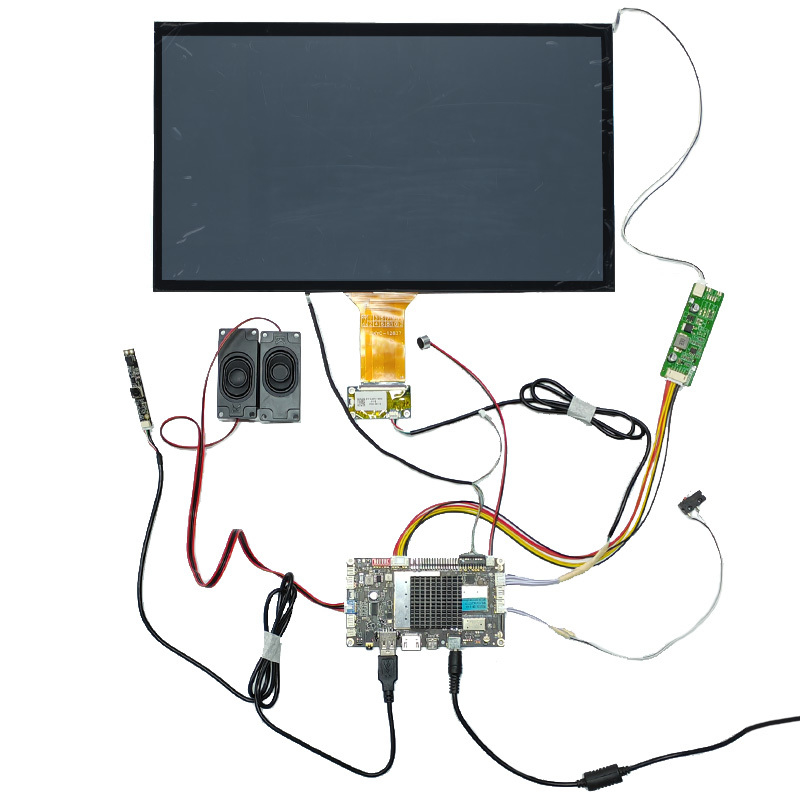

15.6 Inch FHD IPS Touchscreen LCD TFT 1920x1080 Optional with Motherboard
It is a 15.6-inch Motherboard LCD Display, with Full HD resolution (1920x1080), high brightness 860 cd/m² for superior outdoor visibility, and IPS technology for wide viewing angles, it delivers exceptional visual performance in any environment.
With integrated Touch Panel and support for I2C / USB interfaces, this display offers precise and responsive control, ideal for interactive kiosks, industrial control systems, and embedded computing solutions. Its optional motherboard compatibility allows direct integration without additional display controllers, reducing design complexity and cost.
Key Features
High Brightness (860 cd/m²) – Ensures excellent visibility in outdoor and high-ambient light environments.
Motherboard-Compatible – Optional motherboard integration eliminates the need for additional display driver boards.
Wide Temperature Range (-20℃ to +70℃) – Suitable for industrial, military, and outdoor use.
Full HD Resolution – Crisp and detailed image quality for data visualization and interactive applications.
Integrated Touch Panel – Responsive multi-touch input via I2C or USB interface.
Industrial-Grade Durability – Designed for 24/7 operation in harsh conditions.
Applications:
Industrial control terminals
Ruggedized portable devices
Medical diagnostic equipment
Kiosks and interactive panels
Vehicle-mounted control systems
Outdoor and semi-outdoor information displays
Product Specification
| Item Number | ZH156QH001-01C1-TK1 |
| Screen Size | 15.6 Inch |
| Resolution | 1920x1080 |
| Brightness | 860 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | EDP, 30pins Connector |
| Active Aera | 334.16(W) x 193.56(H) mm |
| Outline Dimension | 360.0(W) x212.3(H) x6.4(T) mm |
| Backlight | 60-Chip White LED, 260mA 33V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | with Touch Panel |
| Touch Interface | I2C / USB |
| Touch Driver IC | ILI2511 |
| Cover lens thickness | 1.1mm |
| Motherboard | Optional Motherboard |
Product Drawing
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Contact Us
Looking for high-performance Motherboard LCD Displays for your project?
Our engineering team can provide OEM/ODM customization, from touch panel tuning to enclosure design.
