| Brand Name: | OEM/Customized |
| Model Number: | ZH101PIHD005-01A-TQ1 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

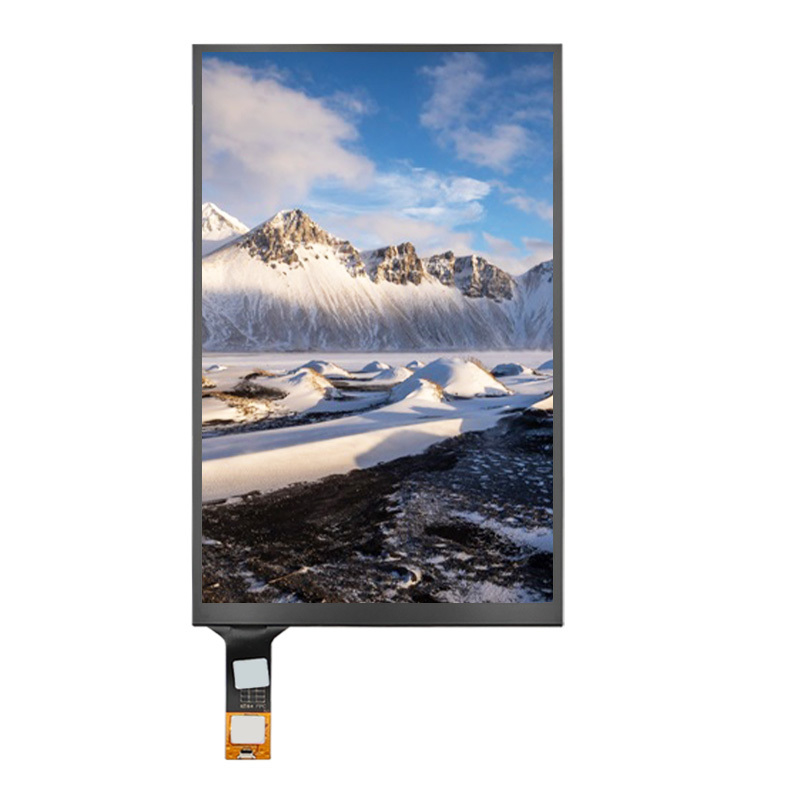

10.1 Inch TFT LCD with Touch Panel Display 800x1280 Resolution MIPI
The 10.1-Inch IPS TFT LCD Touch Display is engineered to meet the demands of professional-grade applications, offering high-quality visuals, responsive touch control, and long-term reliability. Designed for end-product manufacturers, this display is an ideal choice for HMI panels, industrial controls, medical devices, and commercial equipment where precision and durability are critical.
With a MIPI 31-pin interface, JD9365DA-H3 driver IC, this TFT LCD Touch Display ensures clear visibility under indoor lighting conditions. The backlight system, composed of 28-chip white LEDs, provides a 20,000-hour minimum lifespan, reducing maintenance needs in continuous-use applications.
Applications:
This TFT LCD Touch Display is widely suited for:
Industrial HMI and automation panels
Medical diagnostic and monitoring devices
Point-of-sale and kiosk systems
Smart home and building control terminals
Portable instrumentation and field devices
Product Specification
| item | ZH101PIHD005-01A-TQ1 |
| Screen Size | 10.1 Inch |
| Resolution | 800x1280 |
| Brightness | 250 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Driver IC | JD9365DA-H3 |
| Interface | MIPI, 31pins Connector |
| Lifetime | 20,000Hrs.(Min.) |
| Active Aera | 135.36(W) x216.576(H) mm |
| Outline Dimension | 143(W) x228.6(H) x 2.6(T) mm |
| Backlight | 28-Chip white LED, 140mA 12V |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+60℃ |
| Touch Panel | with Touch Panel |
| Touch IC | GT911 |
| Surface Hardness | 6H |
| TP interface | I2C, 6pin |
| TP structure | G+G |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Screen!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
