Customized 1.54 Inch Square PCAP Touch Display 350nits 240x240 IPS LCD Module

Brand Name:	OEM/Customized
Model Number:	ZH015PISS001-01A
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	7-15 working days
Payment Terms:	T/T,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS、ISO9001、CE

Display Size:

1.54 Inch

Resolution:

240x240

Luminance:

350cd/m² (Typ.)

Display Mode:

IPS, Normally Black

Interface:

SPI, 10pins

Operating Temperature:

-20℃~+70℃

Packaging Details:

Foam Cotton And Carton Boxes

Supply Ability:

500K pcs/ Month

Highlight:

1.54 inch IPS TFT LCD display

240x240 square touch screen module

350nits PCAP touch display

Product Description

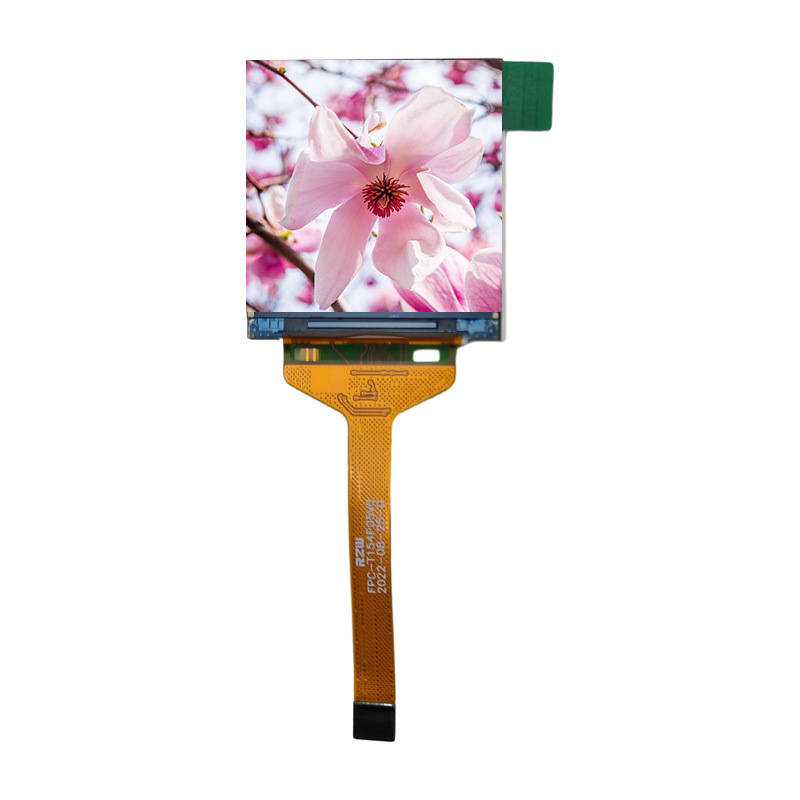

Customized 1.54 Inch Square PCAP Touch Display 350nits 240x240 IPS LCD Module

This 1.54 inch square PCAP touch display module is a high-performance component designed for compact devices. It features a 240×240 square high-definition IPS screen, delivering clear and detailed visuals, and comes standard with highly sensitive Projected Capacitive (PCAP) touch functionality for smooth and intuitive interactive operation. Its compact size, high brightness, and customizable design meet the demanding requirements of various embedded applications.

Focused on flexible integration and reliable performance, the module is widely suitable for wearable devices, portable instruments, smart home control panels, industrial handheld terminals, and interactive display modules, offering high adaptability to satisfy diverse customer design needs.

Key Features

1.54 Inch Square Display

Optimized for space-constrained compact devices. The standard square form factor saves space while providing an efficiently utilized display area, balancing aesthetics and practicality.

240×240 IPS and 350nits

Equipped with a 240×240 square resolution and IPS technology for wide viewing angles and authentic color reproduction. Combined with a brightness of 350 nits, it ensures clear visibility in various indoor and outdoor lighting conditions.

Projected Capacitive (PCAP) Touch

Integrated with a high-sensitivity, high-transmittance PCAP touch screen that supports multi-touch and rapid response, delivering direct, accurate, and smooth touch interaction for users.

Application

Smartwatches and wearable devices
Portable medical testing instruments
Industrial handheld controllers and meters
Smart home control panels
Display modules for small interactive devices

Company's focus on the core

Industrial-Grade TFT/OLED Displays (0.96" to 32")
Brightness up to 1000cd/m² ~2500cd/m² Sunlight Visibility
Wide Temperature -30℃ to +80℃ ,-40℃ to +95℃
Touch Solutions: Resistive/Capacitive/Cover Glass
TN/IPS Panels | Custom Backlight Systems

Product Specification

Item Name	ZH015PISS001-01A
Screen Size	1.54 Inch
Resolution	240x240
Brightness	350 cd/m² (Typ.)
Interface	SPI, 10pins
Active Aera	27.72(W)x27.72(H) mm
Outline Dimension	37.95(W)x44.85(H)x2.98(T) mm
Lifetime	30000(Hrs.)
Operating Temperature	-20℃~+70℃
Storage Temperature	-30℃~+80℃
Touch Panel	Optional Capacitive Touch Screen
CTP View Area	28.32(W)x28.32(H) mm
Touch IC	CST816D
Transparency / Surface Hardness	≥83% / 6H
Touch / Interface	I2C 6pins , 5 points

Product Drawing

Why Choose ZhanHui PCAP Touch Display?

Having been dedicated to industrial vehicle-mounted LCD module applications for 10 years
A powerful engineering support team offers a one-stop integrated solution
Flexible and efficient customization capabilities, with rapid response to demands
Strict quality control system (such as through IATF 16949, ISO 9001)
Global logistics and localized service support
Highly competitive cost-effectiveness

FAQ:

1. What is the minimum order quantity?

All our models have MOQ requirements, please get in touch with our salesman for detailed information.

2. Can I take one piece for sample to test the quality?

Yes, We recommend checking the sample before order. You could order the sample before your order.

3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display

5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!

Order Your PCAP Touch Display Today!

Ensure your next project or product benefits from the advanced capabilities of our PCAP Touch Display. Whether you're developing a new industrial system or enhancing a consumer product, this display module delivers exceptional touch performance, superior image quality, and long-lasting reliability.
