| Brand Name: | OEM/Customized |
| Model Number: | ZH070TH001-03B |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T |

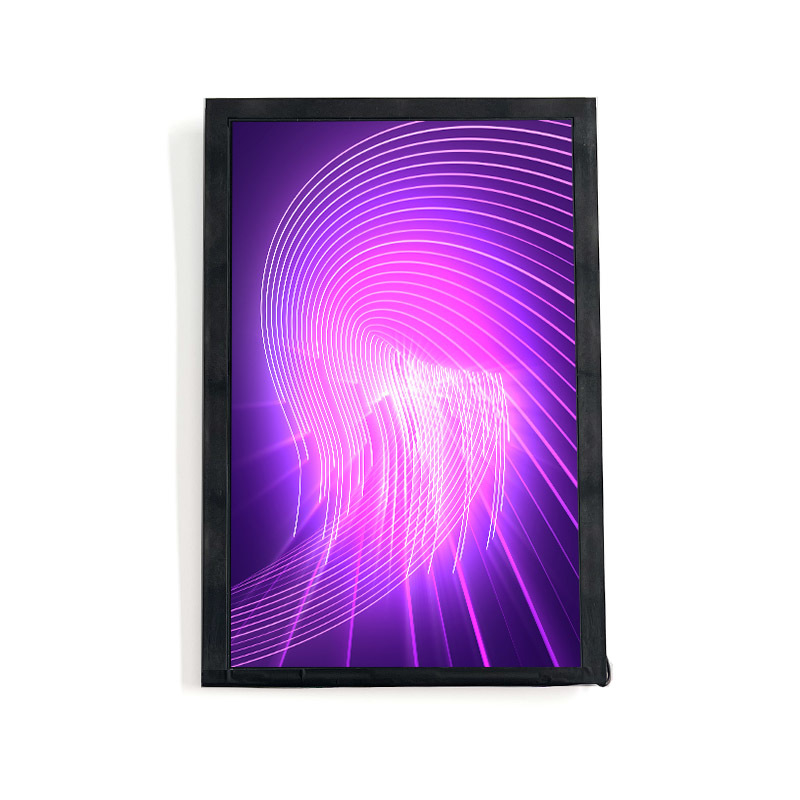

7 Inch HD TFT LCD Display High Brightness 1500nits with MIPI interface
The ZH070TH001-03B 7.0 Inch HD TFT LCD Display offers stunning visual clarity with a resolution of 1200x1920 and a remarkable brightness of 1500 cd/m². This HD TFT LCD Display is engineered to provide vivid, high-definition images that are easy to read and interact with, even in bright environments or outdoor settings.
Whether you are looking to enhance your digital signage, interactive kiosks, POS systems, or other applications, this display offers exceptional performance.
Featuring IPS technology, it guarantees superior color accuracy and wide viewing angles, making it a perfect solution for a variety of consumer-facing displays.
Exceptional Brightness: With a brightness of 1500 cd/m², this HD TFT LCD Display ensures that your content is easily visible even in high-light environments, making it ideal for outdoor applications and bright spaces.
High-Resolution Display: The 1200x1920 resolution offers crisp, clear images and vibrant colors, bringing your content to life with exceptional detail.
Optional Touch Panel: The ZH070TH001-03B includes the option for an optional touch panel, enhancing interactivity for interactive kiosks, digital signage, and other touch-enabled devices.
Customize Your Display with OEM Options
Touch Panel Integration: Add a touch panel for interactive kiosks and self-service terminals.
Brightness Customization: We can adjust the brightness to suit your specific application needs.
Custom Designs: If you have specific requirements, we can work with you to design a custom solution.
Product Specification
| item | ZH070TH001-03B |
| Screen Size | 7.0 Inch |
| Resolution | 1200x1920 |
| Brightness | 1500 cd/m²(Typ.) |
| Display Mode | IPS, Normally Black |
| Interface | MIPI, 40pins Connector |
| Active Aera | 94.5(W) x 151.2(H) mm |
| Outline Dimension | 111.0(W) x166.0(H) x3.29(T) mm |
| Backlight | 56-Chip white LED, 400mA 21V |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Touch Panel | Optional Touch Panel |
Product Drawing
Why Choose ZhanHui TFT LCD Screen?
FQA
1. What is the minimum order quantity?
All our models have MOQ requirements, please get in touch with our salesman for detailed information.
2. Can I take one piece for sample to test the quality?
Yes, We recommend checking the sample before order. You could order the sample before your order.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.What can you buy from us?
LCD Modules,LCD Display Screen,High Brightness TFT LCD Display,Touch Screen,OLED Display
5. Why should you buy from us not from other suppliers?
One of the things that sets us apart from other TFT LCD & PCAP touch modules manufacturers is the level of customization we offer. There is no limit to what we can create when we take on a custom project!
Upgrade your device visibility with this premium TFT LCD Module!
Request a Quote Today!
Download Full Datasheet (Link)
Contact Sales for Volume Pricing
Order Samples Now!
